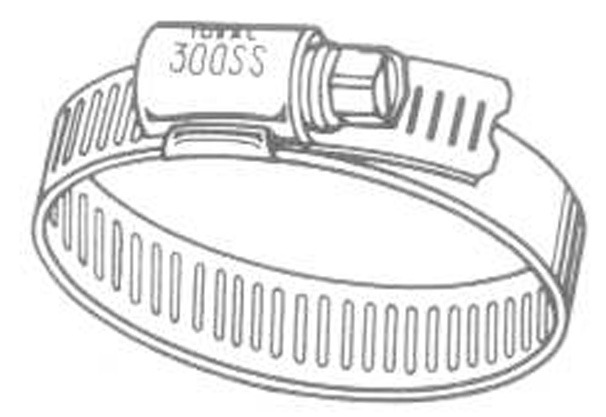

UPD : Ideal Worm Gear Clamps
Completely mechanical design locks the one piece housing directly to the band using the full strength of the material to provide maximum
anti-shear protection. No spot welds to rupture under stress or corrosion. One piece housing cannot come apart under high
loading.
Band: Stainless
Housing: Stainless
Screw: 5/16” Slotted Hex,
Dichromate, Carbon Steel.
| Width | Dia. Range | Part # | Box/Qty |
|---|---|---|---|
| 1/2″ | 3/8″ ~ 7/8″ | 57-06 | 10 |
| 1/2″ | 7/16″ ~ 1″ | 57-08 | 10 |
| 1/2″ | 1/2″ ~ 1-1/16″ | 57-10 | 10 |
| 1/2″ | 1/2″ ~ 1-1/4″ | 57-12 | 10 |
| 1/2″ | 3/4″ ~ 1-1/2″ | 57-16 | 10 |
| 1/2″ | 3/4″ ~ 1-3/4″ | 57-20 | 10 |
| 1/2″ | 1″ ~ 2″ | 57-24 | 10 |
| 1/2″ | 1-5/16″ ~ 2-1/4″ | 57-28 | 10 |
| 1/2″ | 1-9/16″ ~ 2-1/2″ | 57-32 | 10 |
| 1/2″ | 7/8″ ~ 2-3/4″ | 57-36 | 10 |
| 1/2″ | 1-1/8″ ~ 3″ | 57-40 | 10 |
| 1/2″ | 1-5/16″ ~ 3-1/4″ | 57-44 | 10 |
| 1/2″ | 1-5/8″ ~ 3-1/2″ | 57-48 | 10 |
| 1/2″ | 1-7/8″ ~ 3-3/4″ | 57-52 | 10 |
| 1/2″ | 2-1/8″ ~ 4″ | 57-56 | 10 |
| 1/2″ | 3-1/4″ ~ 4-1/4″ | 57-60 | 10 |
| 1/2″ | 2-5/8″ ~ 4-1/2″ | 57-64 | 10 |
| 1/2″ | 3-1/8″ ~ 5″ | 57-72 | 10 |
| 1/2″ | 3-5/8″ ~ 5-1/2″ | 57-80 | 10 |
| 1/2″ | 4-1/4″ ~ 6″ | 57-88 | 10 |
| 1/2″ | 4-3/4″ ~ 6-1/2″ | 57-96 | 10 |
| 1/2″ | 4″ ~ 7″ | 57-104 | 10 |
