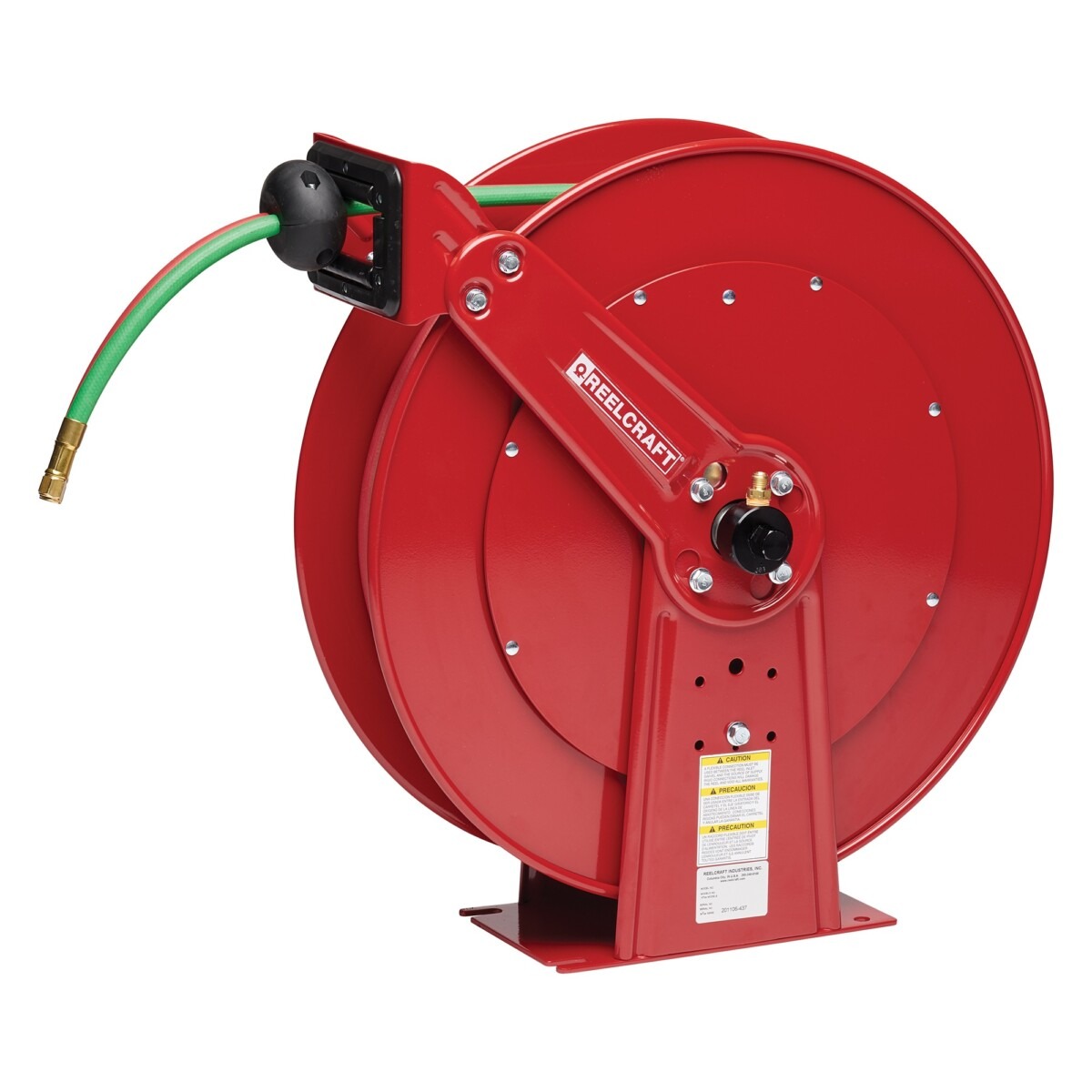

Reelcraft’s Series TW spring retractable gas welding hose reels are designed to improve safety in the work area with an increase in productivity and efficiency. The durable baked-on red powder-coated finish provides maximum corrosion resistance. The reel frame, spool, and drum are fabricated of heavy-gauge steel.
- Leak prevention – The double sealed, special molded o-rings prevent leakage. The swivel inlets are both permanently identified with machined grooves on the gas side to assure proper installation.
- Quality finish and corrosion resistant – Individually powder coated components offer the maximum protection from premature corrosion.
- Reinforced steel – The robotically welded steel base offers maximum strength and consistent quality.
- T-grade capability – The seals and hoses are T-grade for use with a variety of welding gases including mapp, propane, natural, and fuel gases.
NOTE: Reelcraft Series 80000 reels only ship LTL. Small parcel shipments are not available for this model.
| Weight | 101 lbs |
|---|---|
| Series | 80000 |
| Hose I.D. | 1/4″ |
| Hose O.D. | 0.53″ |
| Hose Length | 100′ |
| Pressure | 200 psi |
| Hose End | 9/16 – 18(F) |
| Inlet | 9/16 – 18(M) |
| Reel Outlet | 9/16 – 18(M) |
| Hose Included | Yes |
| Max Temperature | 150 °F |
| UPC | 699567000310 |
| Carton Dimensions | 28″ x 10″ x 27″ |
| A | 25.375″ |
| B | 24″ |
| C | 8.375″ |
| D | 12.25″ |
| E | 10″ |
| F | 6″ |
Fluid Path Materials
| Internal Fluid Path | Aluminum |
| Swivel Assembly | Aluminum / Brass |
| Swivel Seal | Buna |
