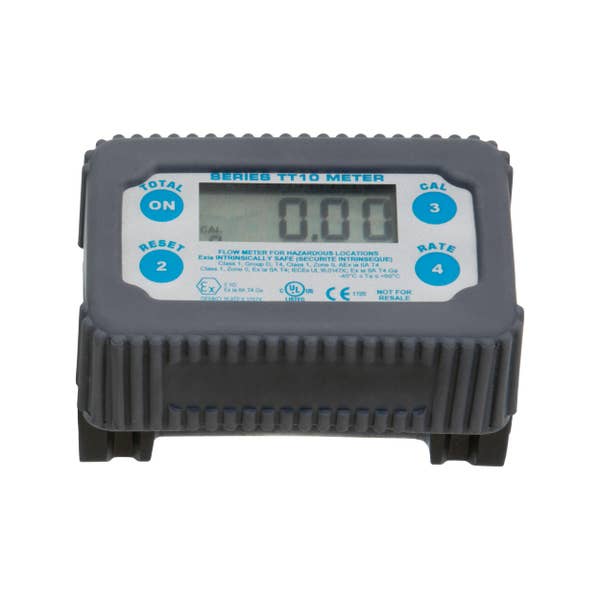

Fill-Rite : TT10PN 2-35 GPM 4-Digit Digital Chemical Transfer Meter
Fill-Rite : TT10PN 2-35 GPM 4-Digit Digital Chemical Transfer Meter
- Versatile Construction – models available in aluminum, polypropylene, and nickel-plated aluminum for varying fluid compatibility
- Extreme Accuracy – measures fluids within +/- 1% accuracy, ensuring your record-keeping is precise as possible
- Flexible Use – in-line design allows for installation at the pump or at the end of the discharge hose, with an LCD display that rotates 180° for your convenience
- Complete Customization – track fluids in any user-created unit in addition to preset measurements like gallons, litres, ounces, pints, and quarts
- Ready Out of Box – factory calibrated for over 20 different fluids makes installation quick, saving you time and eliminating frustration
- Impact Resistant – external rubber boot provides maximum protection and impact resistance for tougher applications
- Lifetime Tracking – non-resettable counter tracks total volume transferred over lifetime of meter, even if batteries are replaced
You work through all kinds of conditions, so why shouldn’t your fuel transfer pump? For over 60 years, Fill-Rite has set the standard for reliable fuel transfer pumps, meters, and accessories. Our customers recognize Fill-Rite for its durability and years of elite performance in the field. Proudly made in the USA with global materials, Fill-Rite equipment is constructed with heavy-duty materials to withstand rugged everyday use, extreme weather exposure, and both on and off-road applications. Fill-Rite is supported by a wide network of distributors and retailers, ensuring you will always be able to find replacement parts and rebuild kits for your fuel transfer equipment.
| Max Flowrate | 35 GPM / 132 LPM |
|---|---|
| Power Type | -- |
| Compatible Fluids | DEF, Antifreeze, Pesticides, Non-Potable Water, De-icing Fluid, Herbicides |
| Inlet Size / Connection / Thread | 1 " / Female / NPT |
| Outlet Size / Connection / Thread | 1 " / Female / NPT |
| Mounting Type | -- |
| Duty Cycle (min) | -- |
| Motor Power (HP) | -- |
| Suction Lift (ft.) | -- |
| Max Operating Pressure (PSI) | 50 |
| Discharge Head (ft) | -- |
| Max Current (A) | -- |
| Operating Temperature Range (°F) | -15 - 140°F / -26 - 60°C |
| AC Frequency (Hz) | -- |
| Pulser | -- |
|---|---|
| Batteries Required | Yes |
| Batteries Included | Yes |
| Battery Quantity | 2 |
| Battery Size | AA |
| Battery Type | Alkaline |
| Additional Accessories | -- |
| Suction Hose | -- |
| Discharge Hose | -- |
| Discharge Hose Diameter (in.) | -- |
| Discharge Hose Length (ft.) | -- |
| Meter | -- |
| Nozzle | -- |
| Cable Connection | -- |
| Additional Accessories | -- |
| Assembled Product Height x Width x Depth (in.) | 2.7 x 4.1 x 2.9 |
|---|---|
| Assembled Product Weight (lbs.) | 0.8 |
| Package Height x Width x Depth (in.) | 7.4 x 6.2 x 3 |
| Gross Weight (lbs.) | 0.900 lbs |
Turbine Meter, 1 Polymer NPT Threads – Agriculture Chemicals, DEF, Non-Potable Water
