The Reelcraft Series RT is an economical choice for a medium duty, lighter-weight, spring retractable hose reel for applications that are less demanding, yet require a product that can withstand industrial and commercial use.
- Spool is constructed from a rugged engineered plastic
- Individually powder coated steel components offer maximum protection from premature corrosion
- The steel guide arm and base are stamped with ribs and gussets to ensure maximum strength and lightest possible weight
- Widened ratchet and latch pawl design greatly reduces wear and increases service life
- Low-pressure 1/2 in. x 35 ft. PVC hose included; hose is for air or water service only
- The industrial-grade drive spring completely containerized and permanently sealed
- Inlet hose is plumbed into the base to eliminate the risk of undue stress on the swivel
- Guide arm adjusts to seven positions
- Made in the USA

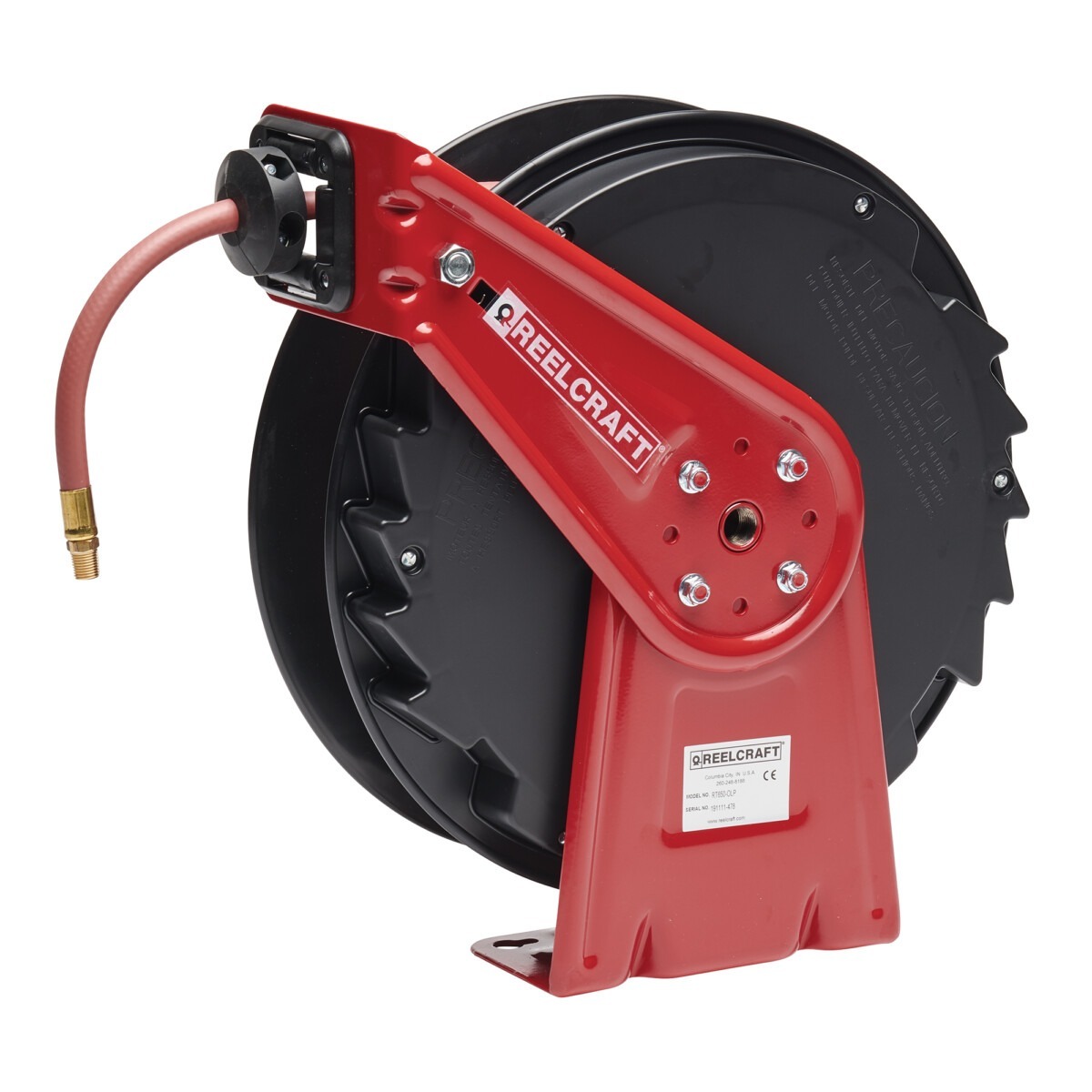

*Reel is shipped in the top wind position. The reel image is shown in the side wind position.
| Weight | 27 lbs |
|---|---|
| Series | RT |
| Hose I.D. | 1/2″ |
| Hose O.D. | 0.75″ |
| Hose Length | 35′ |
| Pressure | 300 psi |
| Hose End | 1/2″ NPT(M) |
| Inlet | 1/2″ NPT(F) |
| Reel Outlet | 1/2″ NPT(F) |
| Hose Included | Yes |
| Max Temperature | 150 °F |
| UPC | 699567000075 |
| Carton Dimensions | 17″ x 6.25″ x 19″ |
| A | 17.875″ |
| B | 16.5″ |
| C | 6″ |
| D | 2.25″ |
| E | 6.25″ |
Fluid Path Materials
| Internal Fluid Path | Steel |
| Swivel Assembly | Steel |
| Swivel Seal | Buna |
