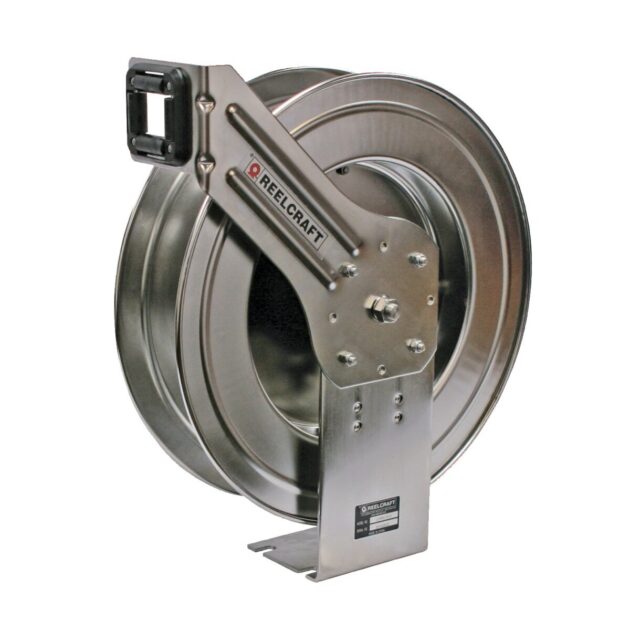

Reelcraft’s Series LC stainless steel hose reels are developed for light-duty, spring-driven hose reel applications in corrosive or sanitary environments. Designed for stationary indoor and outdoor use, these reels can be attached to most surfaces that can be drilled. The reel is built with high quality stainless steel components for maximum corrosion resistance. The four base slots allow the reel to be easily mounted or adjusted. The eight position ratchet locks the reel at the desired hose length while the guide arm adjusts to five convenient positions. **Series LC reels have a brass swivel.**
- Robust construction – Base and guide arm made of heavy-gauge steel stampings with reinforcing ribs
- Corrosion resistant – High quality stainless steel components
- Easy mounting – Base slots to facilitate mounting and adjustment
- Latch spring – Field-proven torsion spring, stainless steel construction
| Weight | 35 lbs |
|---|---|
| Series | LC |
| Hose I.D. | 3/8″ |
| Hose O.D. | 0.6″ |
| Hose Length | 70′ |
| Pressure | 300 psi |
| Inlet | 1/4″ NPT(F) |
| Reel Outlet | 1/4″ NPT(F) |
| Hose Included | No |
| Max Temperature | 150 °F |
| UPC | 699567012917 |
| A | 20.5″ |
| B | 19.375″ |
| C | 4.75″ |
| D | 3″ |
| E | 8.125″ |
