Reelcraft’s Series L 70000 NEMA 5-20R single receptacle power cord reel includes a 20 amp single receptacle. The reel is supplied with a 4-5 foot pigtail that includes a NEMA 5-20P inlet straight blade plug. A newly redesigned latching mechanism provides a longer service life for the latch components. The containerized drive spring offers safer and easier handling during maintenance. Two sealed ball bearings produce a smoother spool rotation and easier operation. The guide arm adjusts to seven positions for various mounting locations and applications. For indoor, non-weather tight applications only. *UL/CSA approved*
- Compact design – Reels are 25% smaller than our heavy duty Series 80000 reels.
- Guide rollers – The one piece design and stainless steel pins offer greater strength and easier serviceability.
- All-steel electrical enclosure – Offers a stronger, more durable protective cover of electrical components.
- Made in USA

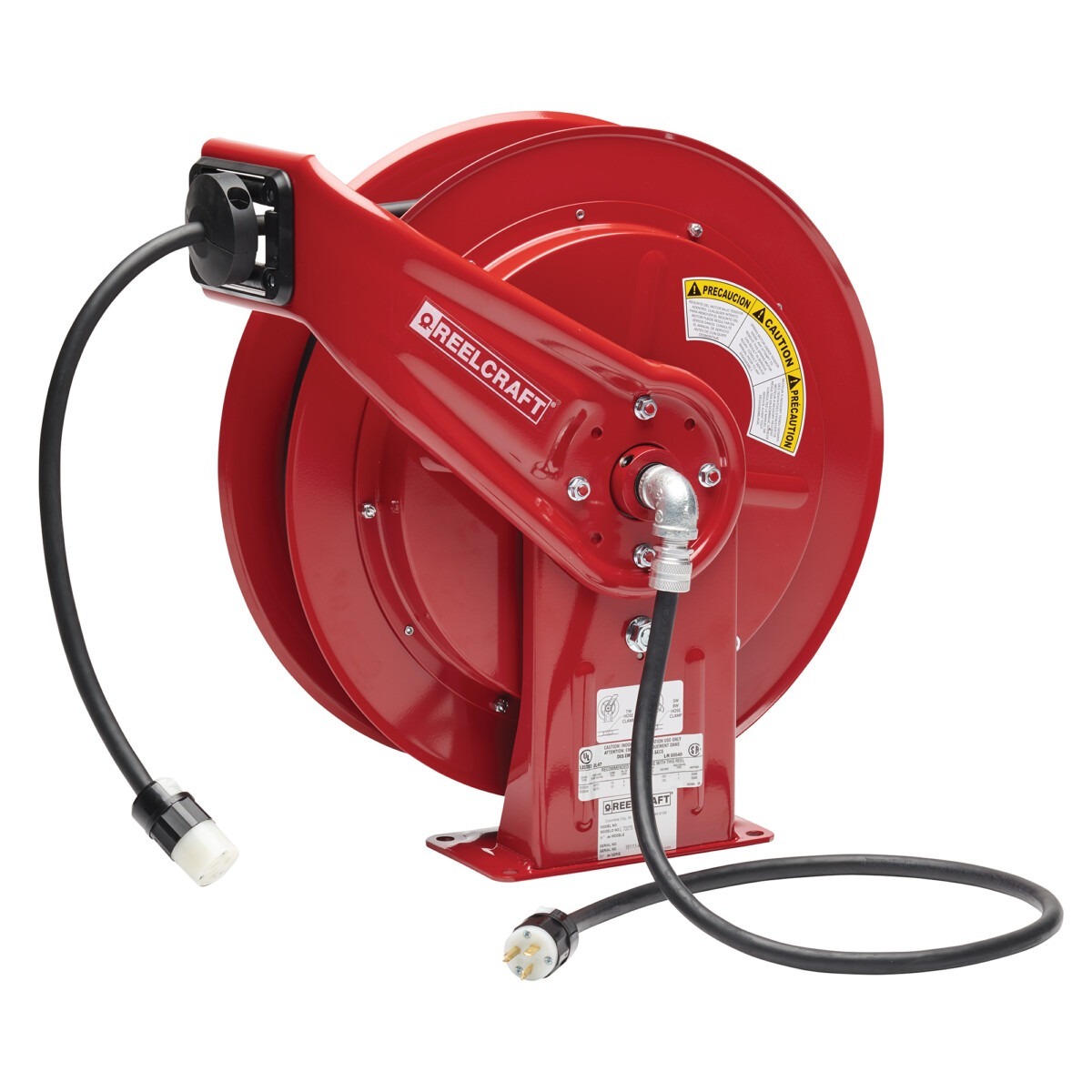

*Reel is shipped in the top wind position. The reel image is shown in the side wind position.
| Weight | 70 lbs |
|---|---|
| Series | L 70000 |
| Cord Ending | Single Receptacle |
| AWG | 12 |
| Cord/Cable Length | 75′ |
| Volts | 125 |
| Amps | 20 |
| Conductors | 3 |
| Cord/Cable Included | Yes |
| Type | SEOOW |
| UPC | 699567018117 |
| Carton Dimensions | 21.25″ x 13.5″ x 22.25″ |
| A | 20.25″ |
| B | 19.75″ |
| C | 7.8125″ |
| D | 3.875″ |
| E | 11.75″ |
