Reelcraft’s Series L 4000 power cord reels offer many different styles of outlets. Easy to mount and structurally strong, Reelcraft power cord reels have a robotically welded heavy gauge steel frame that attaches to most structurally sound surfaces. For indoor, non-weather tight applications only. *UL/CSA approved*
- Reinforced steel – The robotically welded steel base offers maximum strength and consistent quality.
- Heavy duty collector ring – A robust collector ring assures maximum conductivity.
- Long life drive spring – Declutching arbor virtually eliminates possibility of spring damage due to reverse winding. Only the highest quality spring steel is used and conditioned to ensure there are no imperfections offering maximum service life.
- Quality finish and corrosion resistant – Individually powder coated components offer the maximum protection from premature corrosion.
- Made in USA

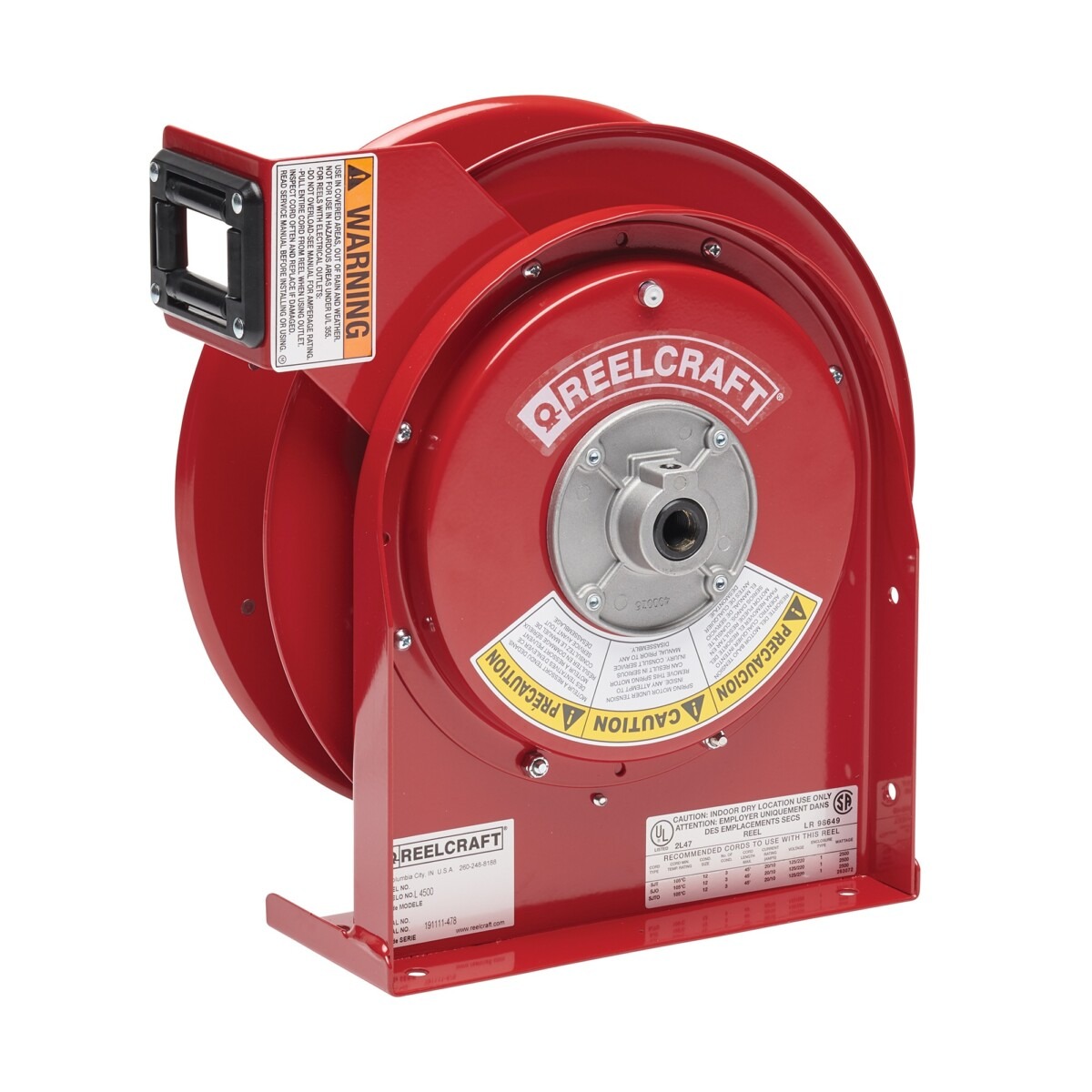

*Reel is shipped in the top wind position. The reel image is shown in side wind position.
| Weight | 22 lbs |
|---|---|
| Series | L 4000 |
| Cord Ending | Bare Reel |
| AWG | 12 |
| Cord/Cable Length | 45′ |
| Volts | 125 |
| Amps | 20 |
| Conductors | 3 |
| Cord/Cable Included | No |
| Type | SJEOOW |
| UPC | 699567002222 |
| Carton Dimensions | 17.5″ x 16″ x 12″ |
| A | 12.875″ |
| B | 12.625″ |
| C | 8″ |
| D | 2.5″ |
| E | 9.375″ |
| F | 1.75″ |
