Reelcraft’s Series L 4000 NEMA 5-15R single receptacle power cord reel includes a 15 amp single receptacle with clamp style strain relief. The reel is supplied with a 4-5 foot pigtail that includes a NEMA 5-15P inlet straight blade plug. For indoor, non-weather tight applications only. *UL/CSA approved*
- Reinforced steel – The robotically welded steel base offers maximum strength and consistent quality.
- Heavy duty collector ring – A robust collector ring assures maximum conductivity.
- Long life drive spring – Declutching arbor virtually eliminates possibility of spring damage due to reverse winding. Only the highest quality spring steel is used and conditioned to ensure there are no imperfections offering maximum service life.
- Quality finish and corrosion resistant – Individually powder coated components offer the maximum protection from premature corrosion.
- Made in USA

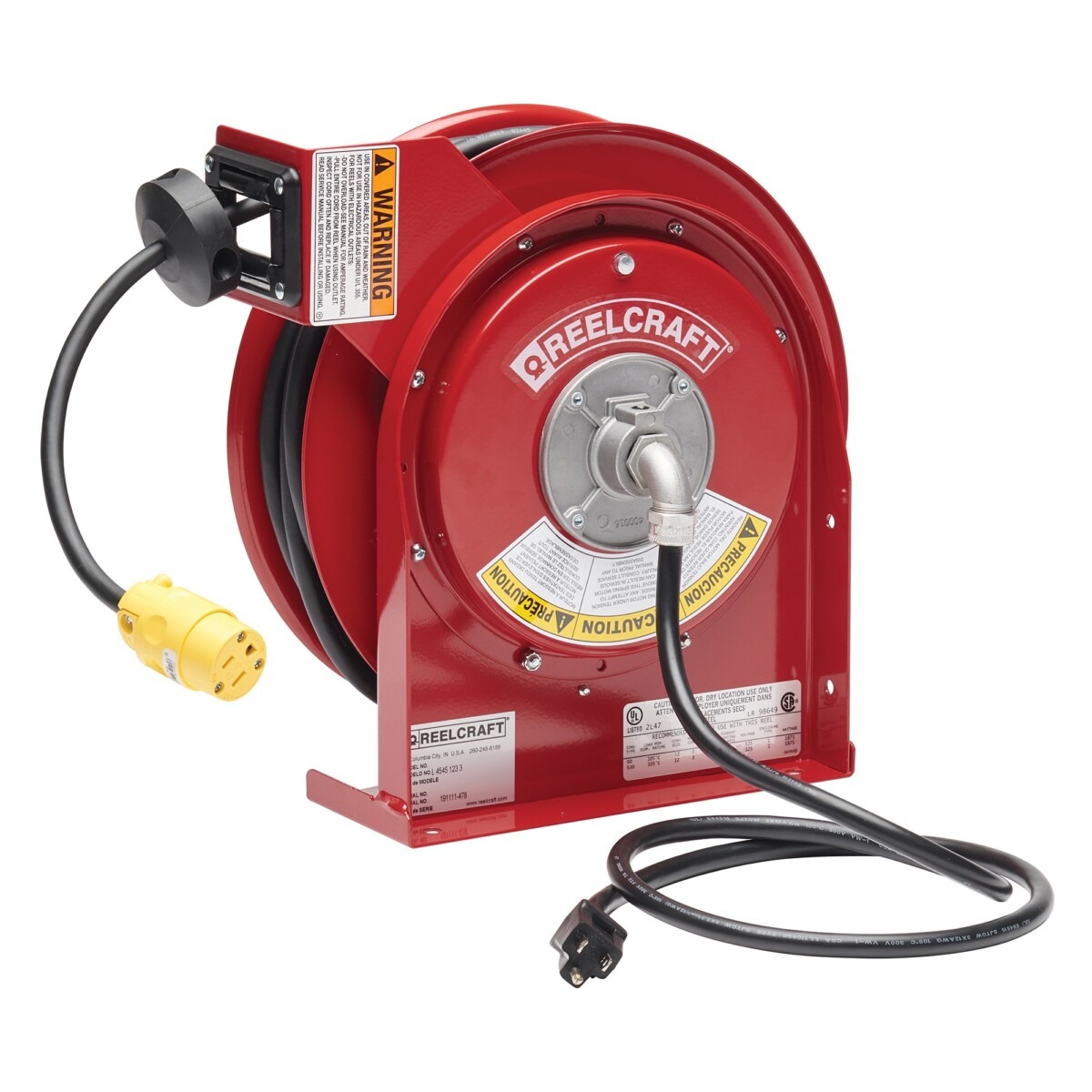

*Reel is shipped in the top wind position. The reel image is shown in side wind position.
| Weight | 26 lbs |
|---|---|
| Series |
L 4000 |
| Cord Ending |
Single Receptacle |
| AWG |
16 |
| Cord/Cable Length |
50′ |
| Volts |
125 |
| Amps |
13 |
| Conductors |
3 |
| Cord/Cable Included |
Yes |
| Type |
SJTOW |
| UPC |
699567002840 |
| Carton Dimensions |
17.5″ x 16″ x 12″ |
| A | 12.875″ |
| B | 12.625″ |
| C | 8″ |
| D | 2.5″ |
| E | 9.375″ |
| F | 1.75″ |
