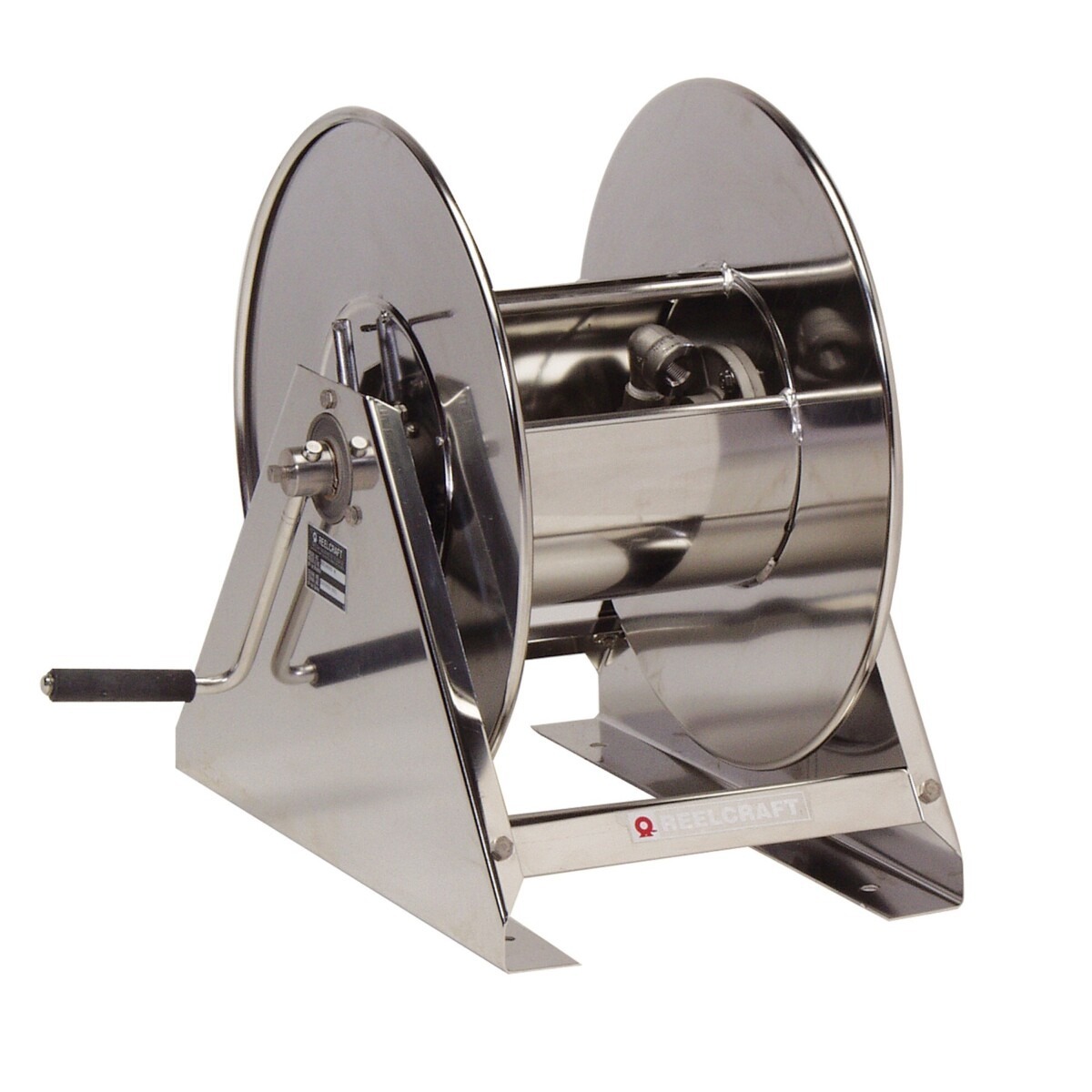

Reelcraft’s stainless steel hose reels are ideal for food processing, pre-rinse, wash down, chemical transfer, and industrial-solvent handling. Also suitable for coastal, offshore, and on-board ships in marine applications where the harsh environment of salt water spray requires the use of stainless steel hose reels. Swivel includes Viton O-rings. Note: Reel hubs are made from aluminum.
- Quality finish and corrosion resistant – Stainless steel components offer maximum protection from premature corrosion.
- Full flow stress-free swivel design – The full flow swivel combines the highest grade seal design and materials with bearing areas to ensure maximum service life.
- Easy to add tension – The T-handle tensioning device allows proper tension to be applied to the spool to eliminate the free spooling of the reel.
- Convenient adjustment of hand crank handle – the handle can easily be rotated out of the way by loosening the set screw.
| Weight | 36 lbs |
|---|---|
| Series | H |
| Hose I.D. | 1/2″ |
| Hose O.D. | 0.85″ |
| Hose Length | 200′ |
| Pressure | 3000 psi |
| Inlet | 1/2″ NPT(F) |
| Reel Outlet | 1/2″ NPT(F) |
| Hose Included | No |
| Max Temperature | 210 °F |
| UPC | 699567003564 |
| Carton Dimensions | 21″ x 20″ x 20.5″ |
| A | 19″ |
| B | 20″ |
| C | 15″ |
| D | 10″ |
| E | 12.5″ |
| F | 5.75″ |
| G | 17.75″ |
Fluid Path Materials
| Internal Fluid Path | Stainless Steel |
| Swivel Assembly | Stainless Steel |
| Swivel Seal | FKM |
