The Reelcraft Series HD70000 hose reels incorporate a heavy-duty base design, all-steel construction and a baked-on powder coat finish to produce a rugged, corrosion-resistant product.
- Compact design – Reels are 25% smaller than our heavy-duty Series 80000 reels
- Redesigned latching mechanism provides longer service life for the latch components
- Guide rollers – The one-piece design and stainless steel pins offer greater strength and easier serviceability
- Containerized drive spring offers easier handling during maintenance
- Low-pressure 3/8 in. x 100 ft. PVC hose included; hose is for air or water service only
- Base plate and upright are constructed from 7 gauge steel; the guide arm is 11 gauge and the spool is 16 gauge steel
- Guide arm adjusts to seven positions
- Ease of operation – The high-quality, die-cast aluminum hub, and two sealed ball bearings produce a smoother spool rotation and easier operation.
- Made in the USA

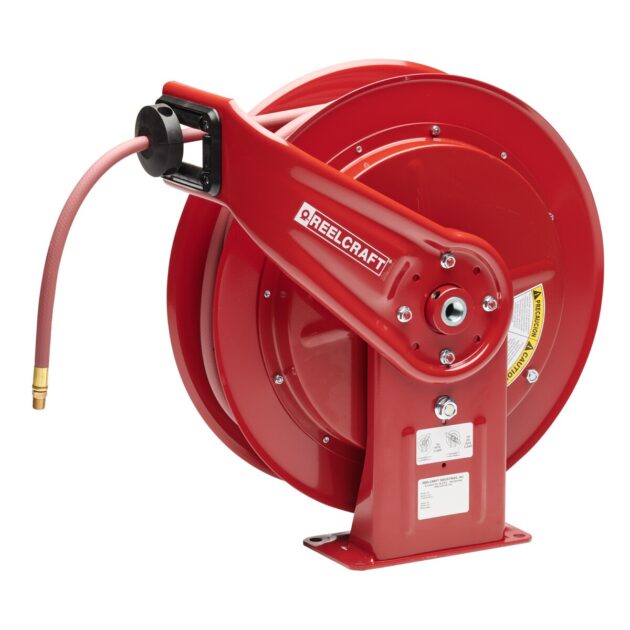

*Reel is shipped in the top wind position. The reel image is shown in the side wind position.
| Weight | 75 lbs |
|---|---|
| Series | HD70000 |
| Hose I.D. | 3/8″ |
| Hose O.D. | 0.600″ |
| Hose Length | 100′ |
| Pressure | 300 psi |
| Hose End | 1/4″ NPT(M) |
| Inlet | 1/2″ NPT(F) |
| Reel Outlet | 1/2″ NPT(F) |
| Hose Included | Yes |
| Max Temperature | 150 °F |
| UPC | 699567017820 |
| Carton Dimensions | 21.25″ x 13.5″ x 22.25″ |
| A | 20.25″ |
| B | 19.75″ |
| C | 7.8125″ |
| D | 3.875″ |
| E | 8.5″ |
Fluid Path Materials
| Internal Fluid Path | Steel |
| Swivel Assembly | Steel |
| Swivel Seal | Buna |
