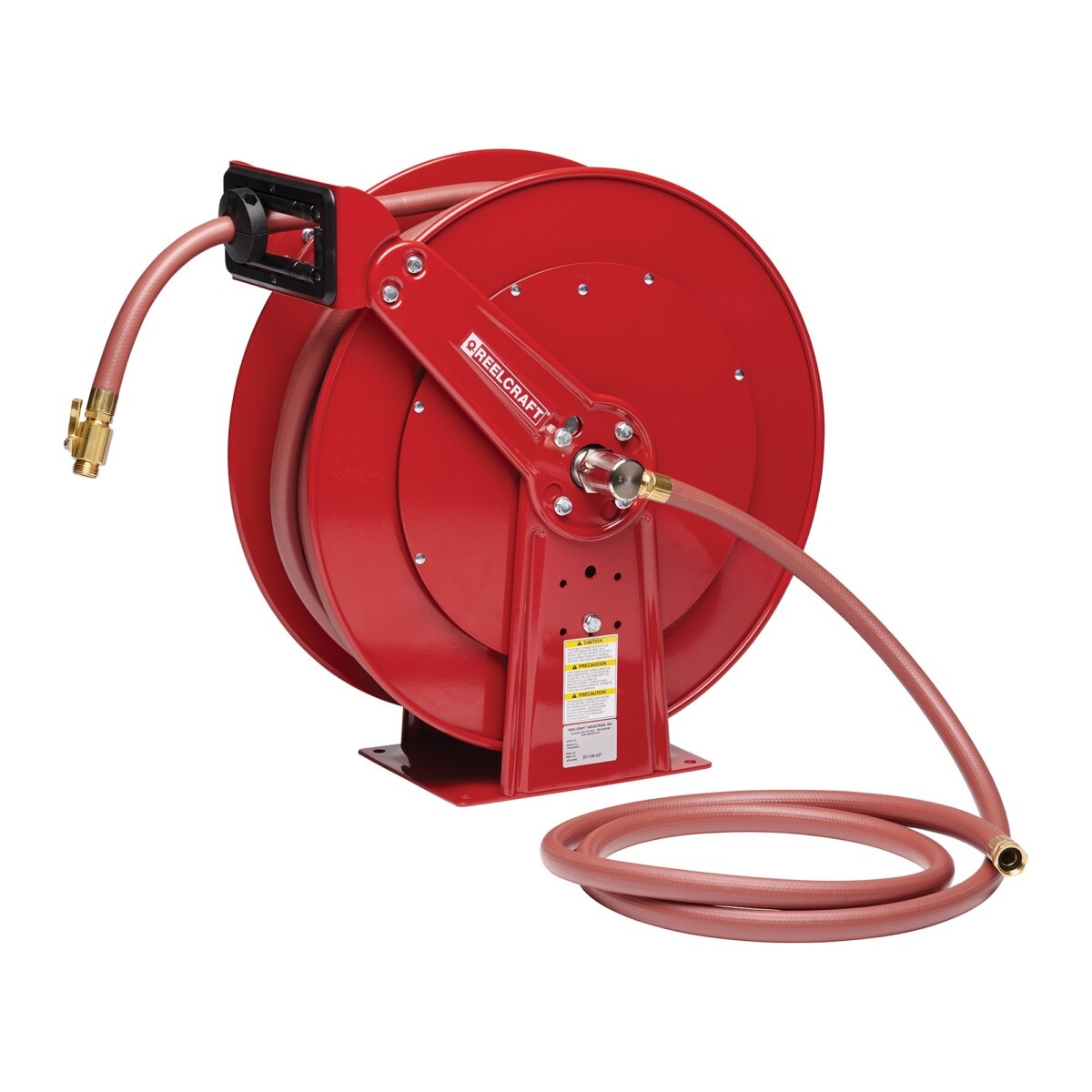

Reelcraft garden hose reels are designed to be mounted centrally and used for watering and washdown. They offer longer lengths of larger I.D. hose, are spring-driven, and come equipped with garden hose end fittings (designated by an NH). This model includes an outlet hose with a brass on/off valve, bumper, and inlet hose, providing a reel solution out of the box.
- Long spring life – Spring is made from high-quality spring steel and conditioned to remove imperfections.
- Structural strength – Reel components are made from industrial-grade steel and ribs are added to give added stability.
- Ease of use – The guide arm is easily adjustable to numerous positions. The hose bumper maintains the desired working hose length.
- Corrosion-resistant – Reel parts are individually powder-coated for high-quality, uniform paint adhesion. The result is a brilliant abrasion/corrosion-resistant finish that keeps these reels looking new through years of use.
- Made in the USA
NOTE: Reelcraft Series 80000 reels only ship LTL. Small parcel shipments are not available for this model.
| Weight | 102 lbs |
|---|---|
| Series | 80000 |
| Hose I.D. | 3/4″ |
| Hose O.D. | 1.075″ |
| Hose Length | 75′ |
| Pressure | 250 psi |
| Hose End | 3/4″ NH(M) |
| Inlet | 3/4″ NH(F) |
| Reel Outlet | 3/4″ NPT(F) |
| Hose Included | Yes |
| Max Temperature | 150 °F |
| UPC | 699567024620 |
| Carton Dimensions | 27.5″ x 13.625″ x 27.625″ |
| A | 25.375″ |
| B | 24″ |
| C | 10.375″ |
| D | 13″ |
| E | 10.5″ |
| F | 7.875″ |
Fluid Path Materials
| Internal Fluid Path | Aluminum |
| Swivel Assembly | Steel |
| Swivel Seal | Aflas |
