Reelcraft’s garden hose reels are designed to be mounted centrally and used for watering and washdown. They offer longer lengths of larger I.D. hose, are spring-driven, and come equipped with garden hose end fittings (designated by an NH). This model includes an outlet hose with brass on/off valve, bumper, and inlet hose, providing a reel solution out of the box.
- Long spring life – Spring is made from high-quality spring steel and conditioned to remove imperfections.
- Structural strength – Reel components are made from industrial-grade steel and ribs are added to give added stability.
- Corrosion-resistant – Parts are individually powder-coated for high quality, uniform paint adhesion. The result is a brilliant abrasion/corrosion-resistant finish that keeps these reels looking new through years of use.

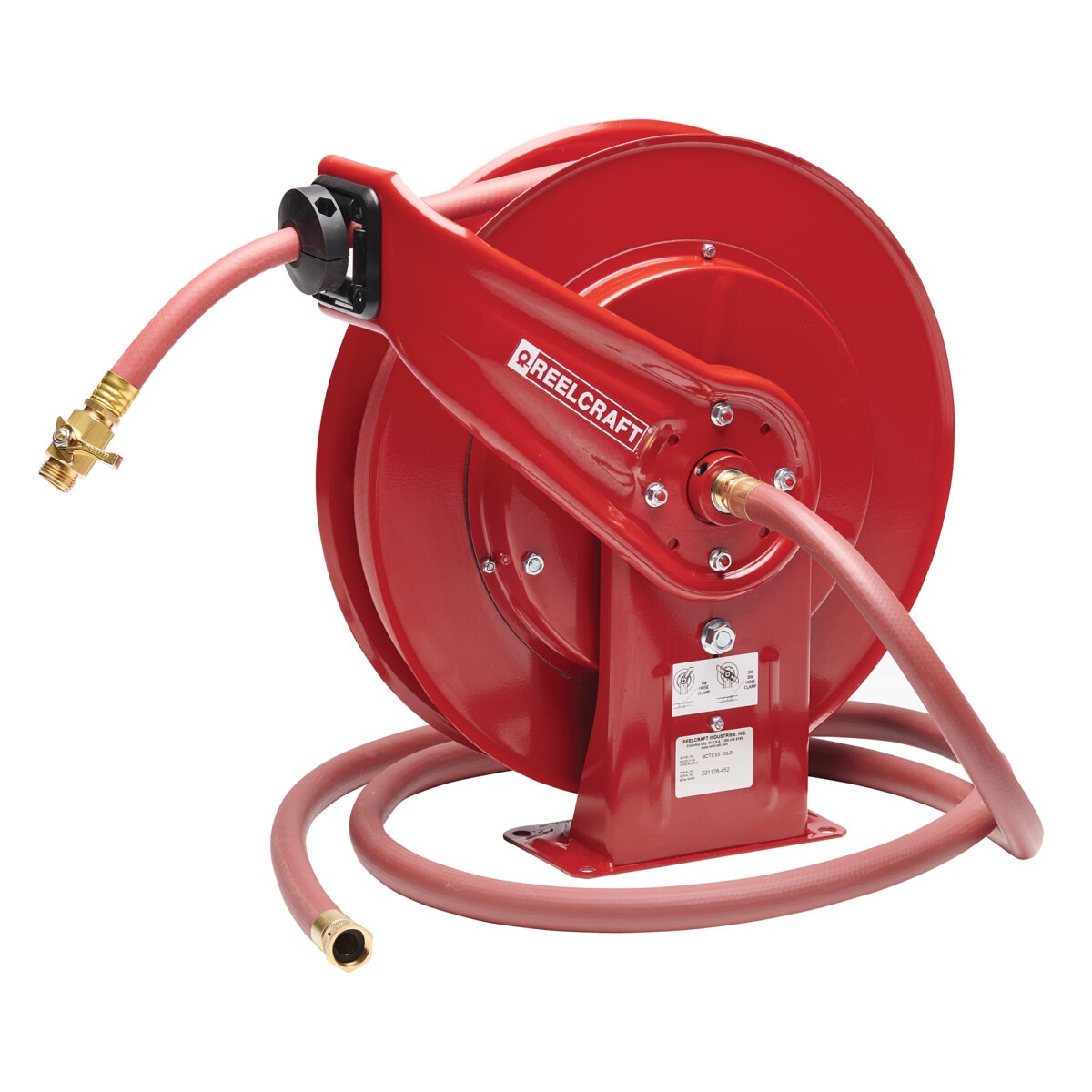

*Reel is shipped in the top wind position. The reel image is shown in the side wind position.
| Weight | 55 lbs |
|---|---|
| Series | 7000 |
| Hose I.D. | 5/8″ |
| Hose O.D. | 0.810″ |
| Hose Length | 35′ |
| Pressure | 200 psi |
| Hose End | 3/4″ NH(M) |
| Inlet | 3/4″ NH(F) |
| Reel Outlet | 3/4″ NPT(F) |
| Hose Included | Yes |
| Max Temperature | 150 °F |
| UPC | 699567008750 |
| Carton Dimensions | 23.375″ x 9.375″ x 25.5″ |
| A | 20.25″ |
| B | 19.75″ |
| C | 7.8125″ |
| D | 3.875″ |
| E | 7″ |
Fluid Path Materials
| Internal Fluid Path | Steel |
| Swivel Assembly | Steel |
| Swivel Seal | Aflas |
