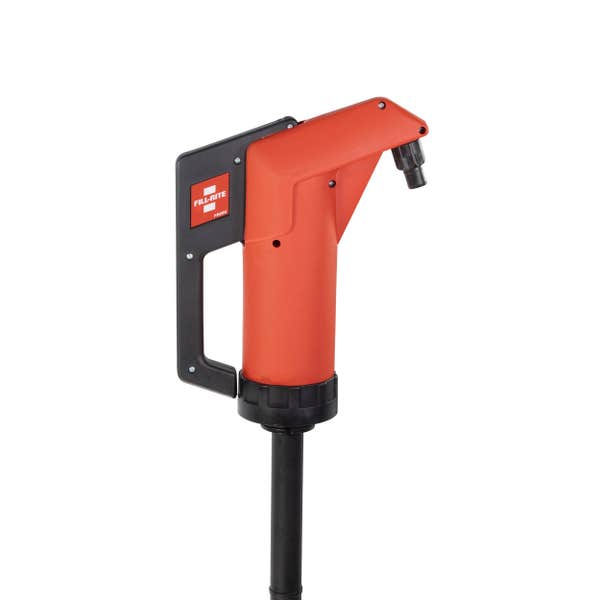

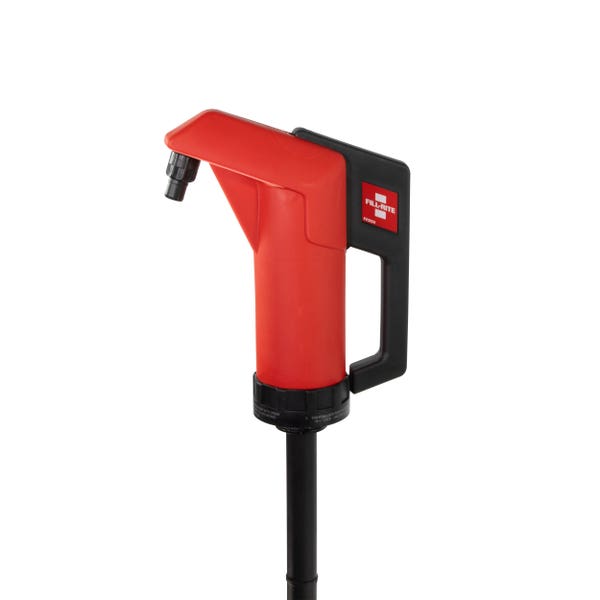

The FR20V model is a hand-operated, economy fuel transfer pump that delivers 11 oz. per stroke. This pump and accessory bundle comes complete with a suction pipe and installation components.
Features
- Polypropylene Construction – rugged polypropylene body resists corrosion in demanding chemical and industrial applications
- Economical Solution – reliably transfers 11 oz. per stroke from 55-gallon drums in low-volume transfer applications
- No Electricity Needed– ideal for low-volume applications where access to power is not available or required, allowing for stationary use or complete mobility
- Flexible Fluid Compatibility – compatible with a wide variety of fuel, oil, and chemical fluids
You work through all kinds of conditions, so why shouldn’t your fuel transfer pump? For over 60 years, Fill-Rite has set the standard for reliable fuel transfer pumps, meters, and accessories. Our customers recognize Fill-Rite for its durability and years of elite performance in the field. Proudly made in the USA with global materials, Fill-Rite equipment is constructed with heavy-duty materials to withstand rugged everyday use, extreme weather exposure, and both on and off-road applications. Fill-Rite is supported by a wide network of distributors and retailers, ensuring you will always be able to find replacement parts and rebuild kits for your fuel transfer equipment.
Performance
| Max Flowrate | 11 oz. Per Stroke / 33 mL |
|---|---|
| Power Type | Hand-Operated |
| Compatible Fluids | Diesel, Antifreeze, Mild Acids, Light Oils |
| Inlet Size / Connection / Thread | 1 ” / Female / NPT |
| Outlet Size / Connection / Thread | 0.75 ” / Female / Hose Barb |
| Mounting Size / Thread / Type | 2″ / NPT / Bung Mount |
| Self Priming | — |
| Duty Cycle (min) | — |
Included Accessories
| Suction Pipe | 19 ½” – 35 ½” Polypropylene Telescoping Suction Pipe |
|---|---|
| Nozzle | — |
| Discharge Hose | — |
| Additional Accessories | — |
| Additional Accessories | — |
Dimensions
| Assembled Product Height x Width x Depth (in.) | 13.5 x 9.25 x 4.0 |
|---|---|
| Assembled Product Weight (lbs.) | 2.7 |
| Package Height x Width x Depth (in.) | 9.33 x 20.79 x 4.45 |
| Gross Weight (lbs.) | 3.400 lbs |
