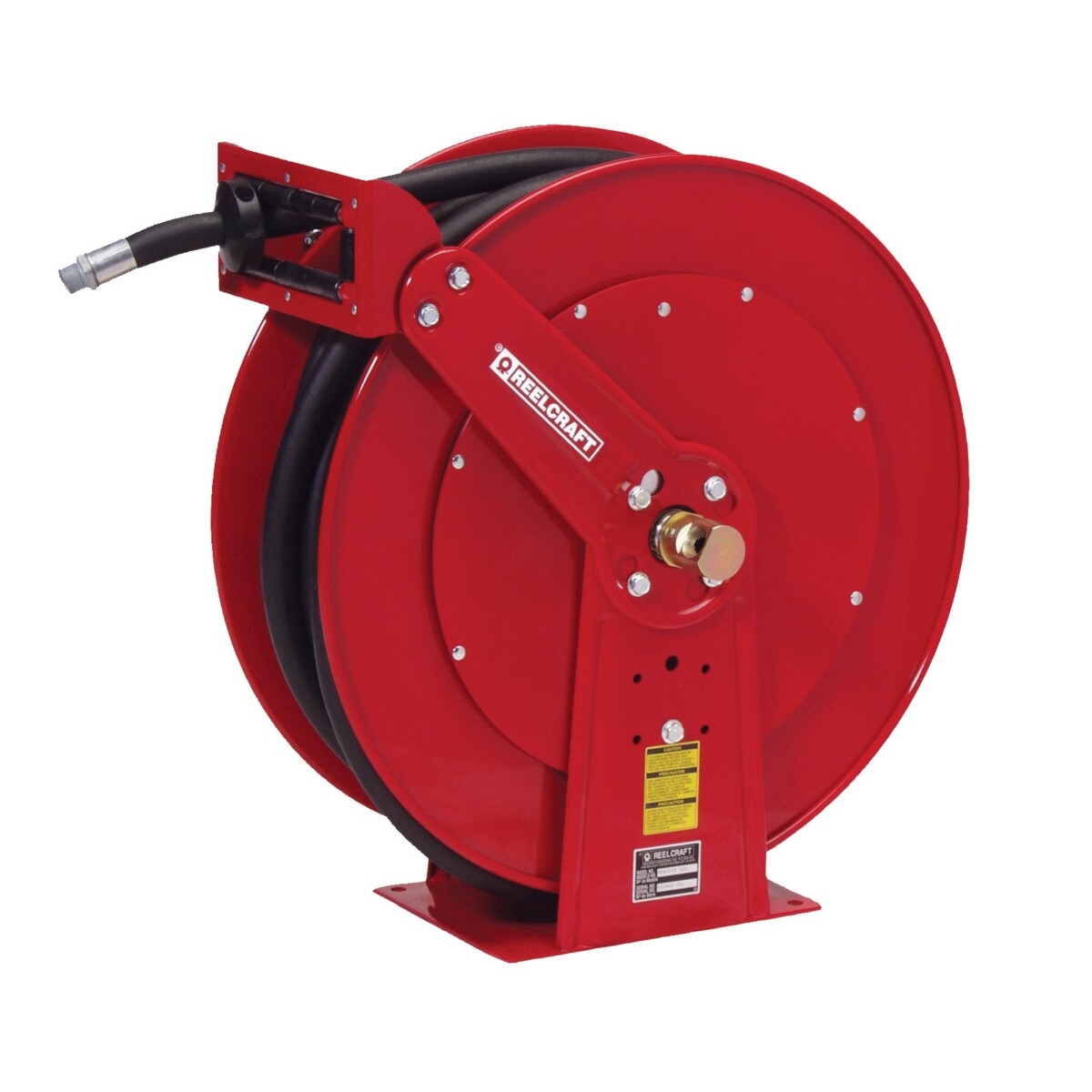

Reelcraft’s spring retractable fuel delivery hose reels, equipped with Viton seals, incorporate metal forms to ensure the greatest possible strength and are ideal for mobile and permanent-mount applications. These rugged, corrosion-resistant reels are suitable for a wide variety of fuel applications including E85. Series FD80000 reels are supplied with our ball-bearing style swivel. NOTE: Not recommended for jet fuel.
- Robust latching mechanism – Latch and ratchet are made of heavy-duty cast aluminum with substantial surface area to limit the opportunity for premature wear.
- Full flow stress free swivel design – The full flow swivel combines the highest grade seal design and materials with bearing areas to ensure maximum service life.
- Quality finish and corrosion resistant – Individually powder coated components offer the maximum protection from premature corrosion.
- Made in USA
NOTE: Reelcraft Series 80000 reels only ship LTL. Small parcel shipments are not available for this model.
| Weight | 115 lbs |
|---|---|
| Series | 80000 |
| Hose I.D. | 3/4″ |
| Hose O.D. | 1.188″ |
| Hose Length | 75′ |
| Pressure | 50 psi |
| Hose End | 3/4″ NPT(M) |
| Inlet | 3/4″ NPT(F) |
| Reel Outlet | 3/4″ NPT(F) |
| Hose Included | Yes |
| Max Temperature | 150 °F |
| UPC | 699567003335 |
| Carton Dimensions | 27.5″ x 13.625″ x 27.625″ |
| A | 25.375″ |
| B | 24″ |
| C | 10.375″ |
| D | 13″ |
| E | 10.5″ |
| F | 7.85″ |
Fluid Path Materials
| Internal Fluid Path | Aluminum |
| Swivel Assembly | Steel |
| Swivel Seal | FKM |
