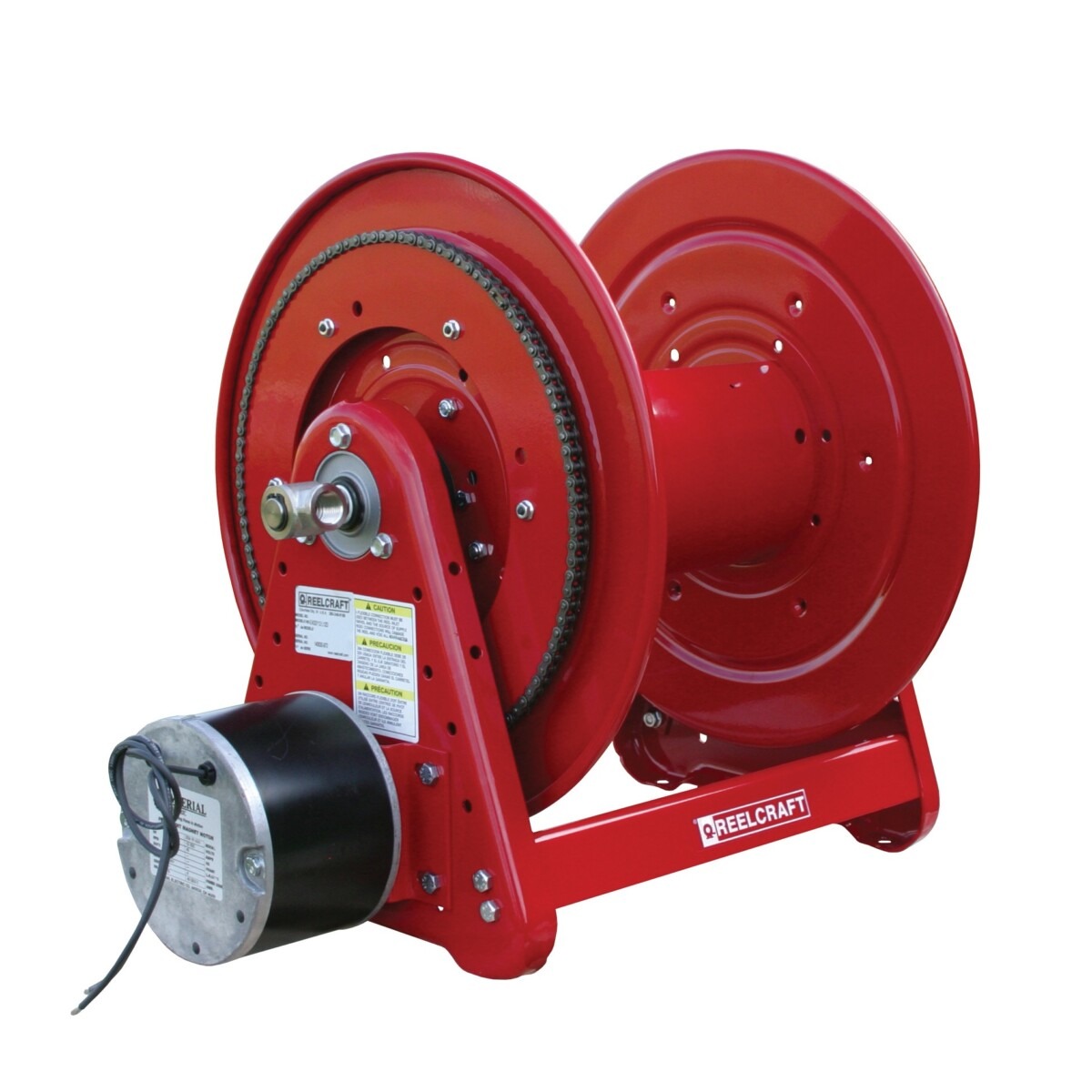

Reelcraft’s Series 30000 hose reels are designed for rugged applications requiring long lengths of hose and large storage capacity. All-bolted unitized construction with no welds to fatigue, full flow swivel, and heavy gauge steel frame, spool, and drum ensure longest service life. Series 30000’s vibration-proof, self-locking fasteners are ideal for industrial or field use such as turf care or pest control.
- Full flow stress free swivel design – The full flow swivel combines the highest grade seal design and materials with bearing areas to ensure maximum service life.
- Quality finish and corrosion resistant – Individually powder coated components offer the maximum protection from premature corrosion.
- Model is supplied with a 12 V DC motor.
- Made in the USA
| Weight | 71 lbs |
|---|---|
| Series | 30000 |
| Hose I.D. | 1″ |
| Hose O.D. | 1.375″ |
| Hose Length | 100′ |
| Pressure | 1000 psi |
| Inlet | 1″ NPT(F) |
| Reel Outlet | 1″ NPT(F) |
| Hose Included | No |
| Max Temperature | 210 °F |
| UPC | 699567012351 |
| Carton Dimensions | 33.75″ x 18″ x 22.25″ |
| A | 20.25″ |
| B | 17.75″ |
| C | 9″ |
| D | 21.75″ |
| E | 31″ |
| F | 18″ |
Fluid Path Materials
| Internal Fluid Path | Ductile Iron |
| Swivel Assembly | Steel |
| Swivel Seal | Aflas |
