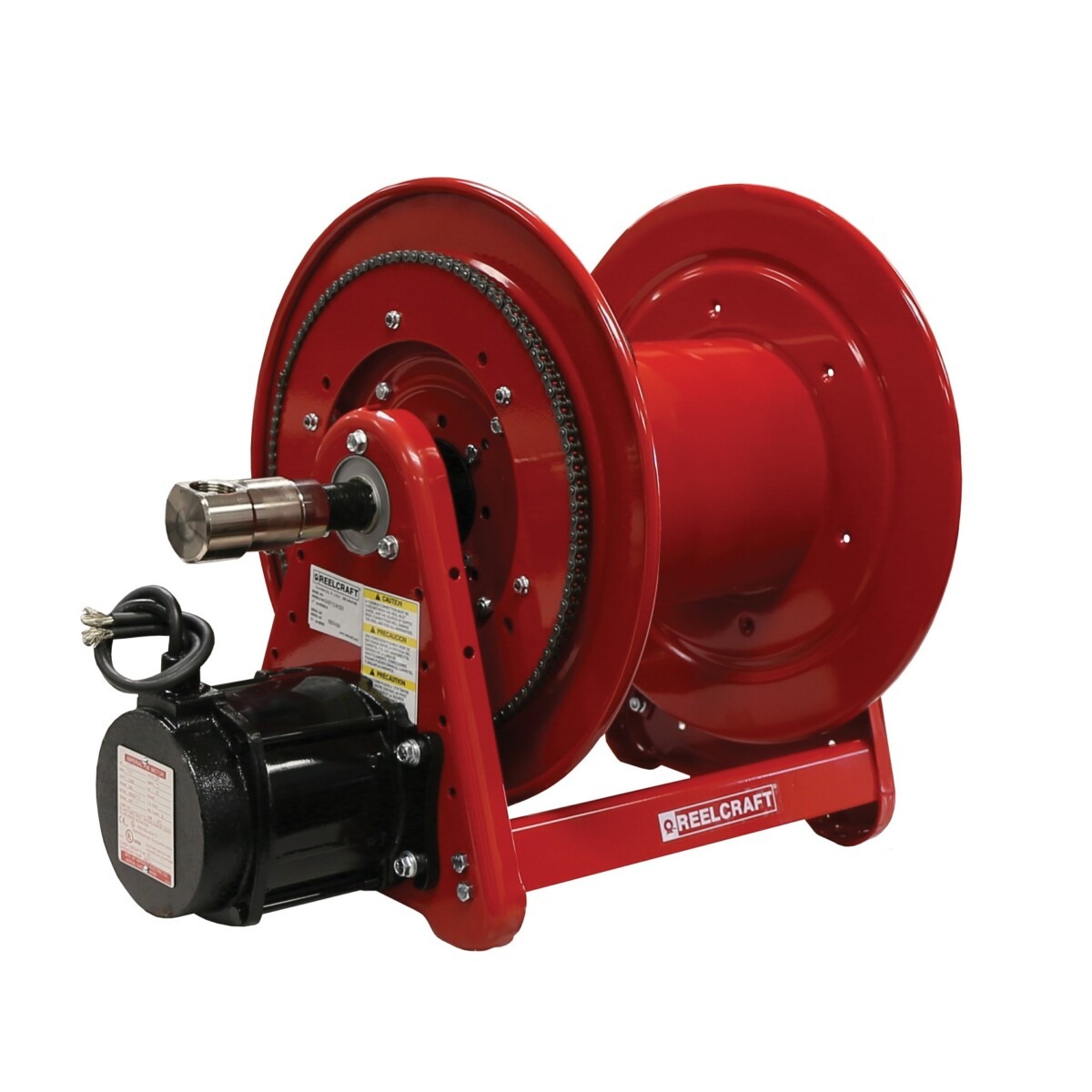

Reelcraft’s Series 30000 hose reels are designed for rugged, heavy duty applications requiring long lengths of hose and large storage capacity. The all-bolted unitized construction with no welds to fatigue, full flow swivel and heavy gauge steel frame, spool and drum ensure longest service life. The Series 30000 vibration-proof, self-locking fasteners are ideal for industrial or field use such as turf care or pest control.
- Hose replacement made easy – the gooseneck can easily be removed to simplify adding long lengths of hose to the reel.
- Quality finish and corrosion resistant – Individually powder coated components offer the maximum protection from premature corrosion.
- Motor options – Multiple motor options provide an easy method to rewind long lengths of hose.
- Model is supplied with a 115 V AC motor.
- Made in USA
| Weight | 82 lbs |
|---|---|
| Series | 30000 |
| Hose I.D. | 1/2″ |
| Hose O.D. | 0.85″ |
| Hose Length | 200′ |
| Pressure | 3000 psi |
| Inlet | 1/2″ NPT(F) |
| Reel Outlet | 1/2″ NPT(F) |
| Hose Included | No |
| Max Temperature | 210 °F |
| UPC | 699567019992 |
| Carton Dimensions | 27.75″ x 18″ x 22.25″ |
| A | 20.25″ |
| B | 17.75″ |
| C | 9″ |
| D | 15.75″ |
| E | 23.875″ |
| F | 12″ |
Fluid Path Materials
| Internal Fluid Path | Ductile Iron |
| Swivel Assembly | Steel |
| Swivel Seal | Aflas |
