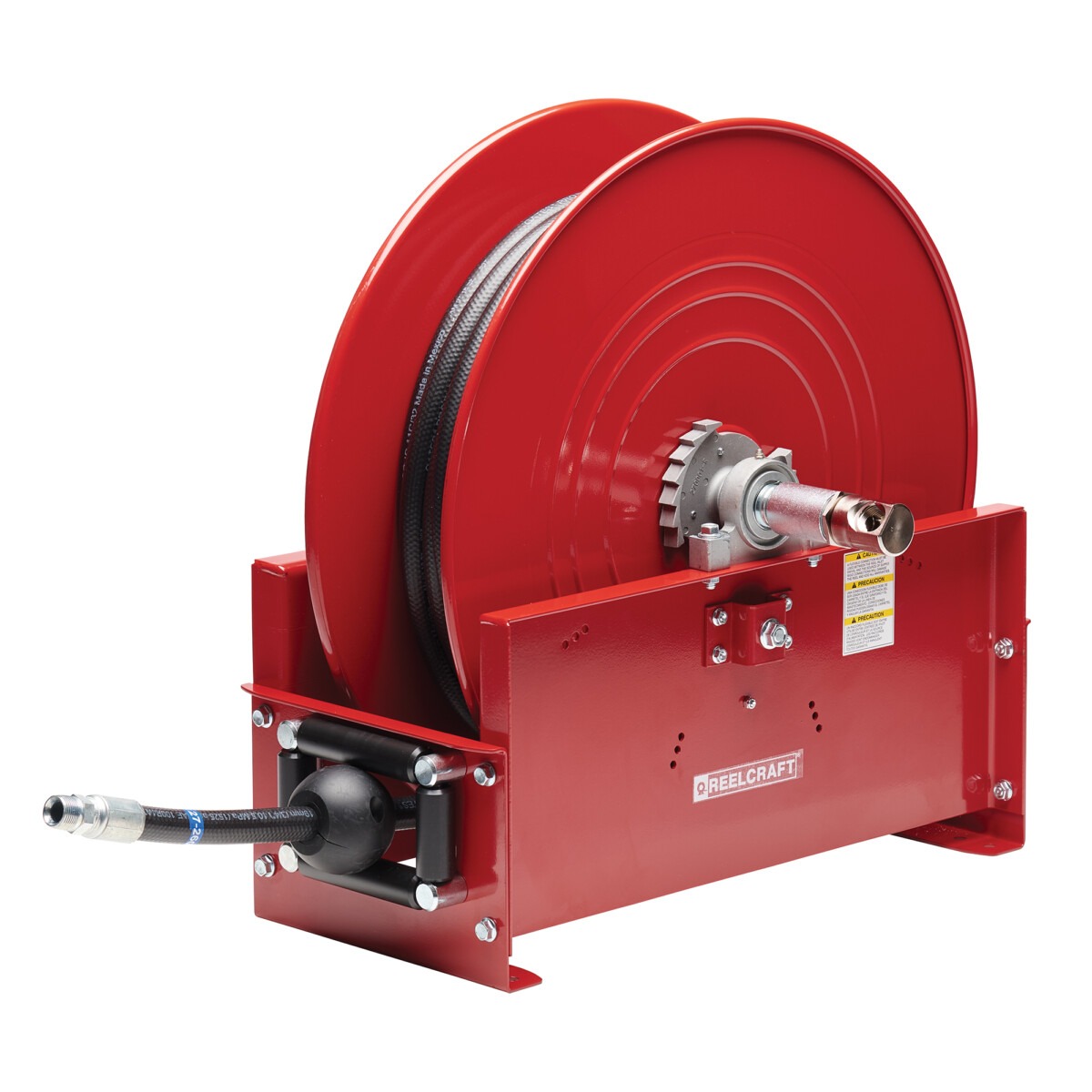

Reelcraft’s Series E9000 mobile base hose reels offer the greatest amount of stability. Ideal for portable service trucks, permanent service, or plant work areas. A durable baked-on powder coat finish produces a rugged corrosion-resistant product suitable for a wide variety of heavy-duty applications. Contact Reelcraft for top wind and side wind hose guide conversion kits.
- Substantial base frame – The full-width frame has the greatest amount of mounting area and overall strength of reels within its class.
- Full flow stress-free swivel design – The full flow swivel combines the highest grade seal design and materials with bearing areas to ensure maximum service life.
- Robust latching mechanism – The latch and ratchet are made of heavy-duty cast aluminum with substantial surface area to limit the opportunity for premature wear.
- The reel is shipped in the bottom wind position with a right-hand inlet.
- Made in the USA
NOTE: Reelcraft Series 9000 reels only ship LTL. Small parcel shipments are not available for this model.
| Weight | 138 lbs |
|---|---|
| Series | 9000 |
| Hose I.D. | 3/4″ |
| Hose O.D. | 1.188″ |
| Hose Length | 50′ |
| Pressure | 1250 psi |
| Hose End | 3/4″ NPT(M) |
| Inlet | 3/4″ NPT(F) |
| Reel Outlet | 3/4″ NPT(F) |
| Hose Included | Yes |
| Max Temperature | 210 °F |
| UPC | 699567001942 |
| Guide Roller Position | Bottom Wind |
| Carton Dimensions | 28″ x 13.5″ x 29″ |
| A | 26.375″ |
| B | 26.25″ |
| C | 22.25″ |
| D | 7.75″ |
| E | 12″ |
| F | 24.125″ |
| G | 4.75″ |
Fluid Path Materials
| Internal Fluid Path | Steel |
| Swivel Assembly | Steel |
| Swivel Seal | Aflas |
