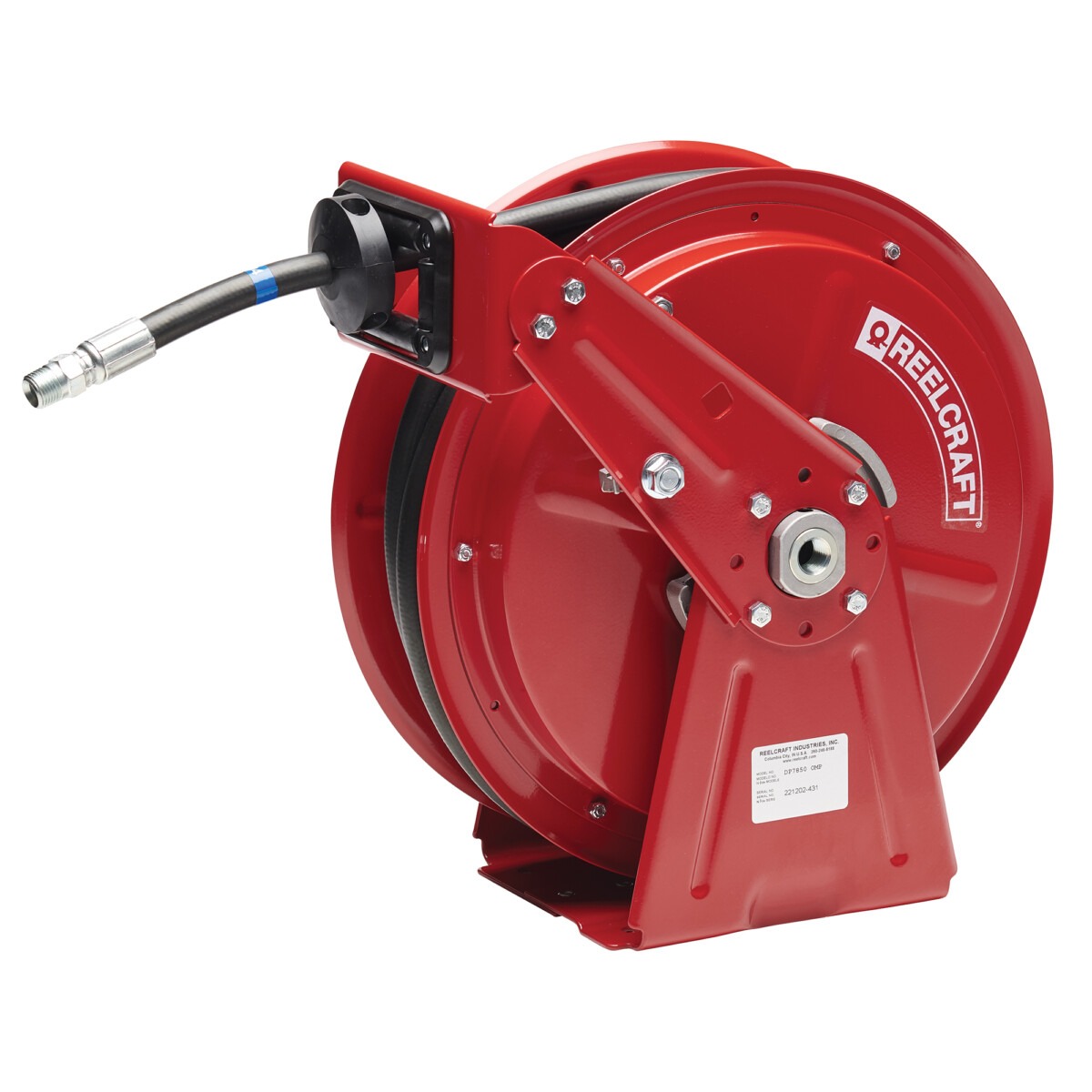

Reelcraft’s compact dual pedestal Series DP7000 hose reel features an innovative, non-welded, interlocking base. Independent testing to military standards has proven the reel stands up to heavy vibration, which makes them especially strong and ideal for truck-mounted applications. Superbly engineered dual pedestal base and guide arm are structurally reinforced. An all-steel construction and a baked-on powder coat finish combine to produce a rugged corrosion-resistant product suitable for a wide variety of heavy-duty applications.
- Reinforced steel – Steel guide arm and dual pedestal base are stamped with ribs and gussets to ensure maximum strength and the lightest possible weight. The interlocking base eliminated the need for welds increasing the strength while utilizing fewer parts.
- Superior latch spring design – The torsions style latch spring life far exceeds that of conventional coil springs.
- Long life drive spring – Declutching arbor eliminates reverse spring winding, and the torsion latch spring is virtually unbreakable. High-quality spring steel is used and conditioned to ensure there are no imperfections offering maximum service life.
- Made in the USA
| Weight | 65 lbs |
|---|---|
| Series | DP7000 |
| Hose I.D. | 3/8″ |
| Hose O.D. | 0.73″ |
| Hose Length | 50′ |
| Pressure | 4800 psi |
| Hose End | 1/4″ NPT(M) |
| Inlet | 1/2″ NPT(F) |
| Reel Outlet | 3/8″ NPT(F) |
| Hose Included | Yes |
| Max Temperature | 210 °F |
| UPC | 699567005940 |
| Carton Dimensions | 18.5″ x 10″ x 19.5″ |
| A | 17″ |
| B | 16.5″ |
| C | 7″ |
| D | 4″ |
| E | 8″ |
Fluid Path Materials
| Internal Fluid Path | Steel |
| Swivel Assembly | Steel |
| Swivel Seal | Buna |
