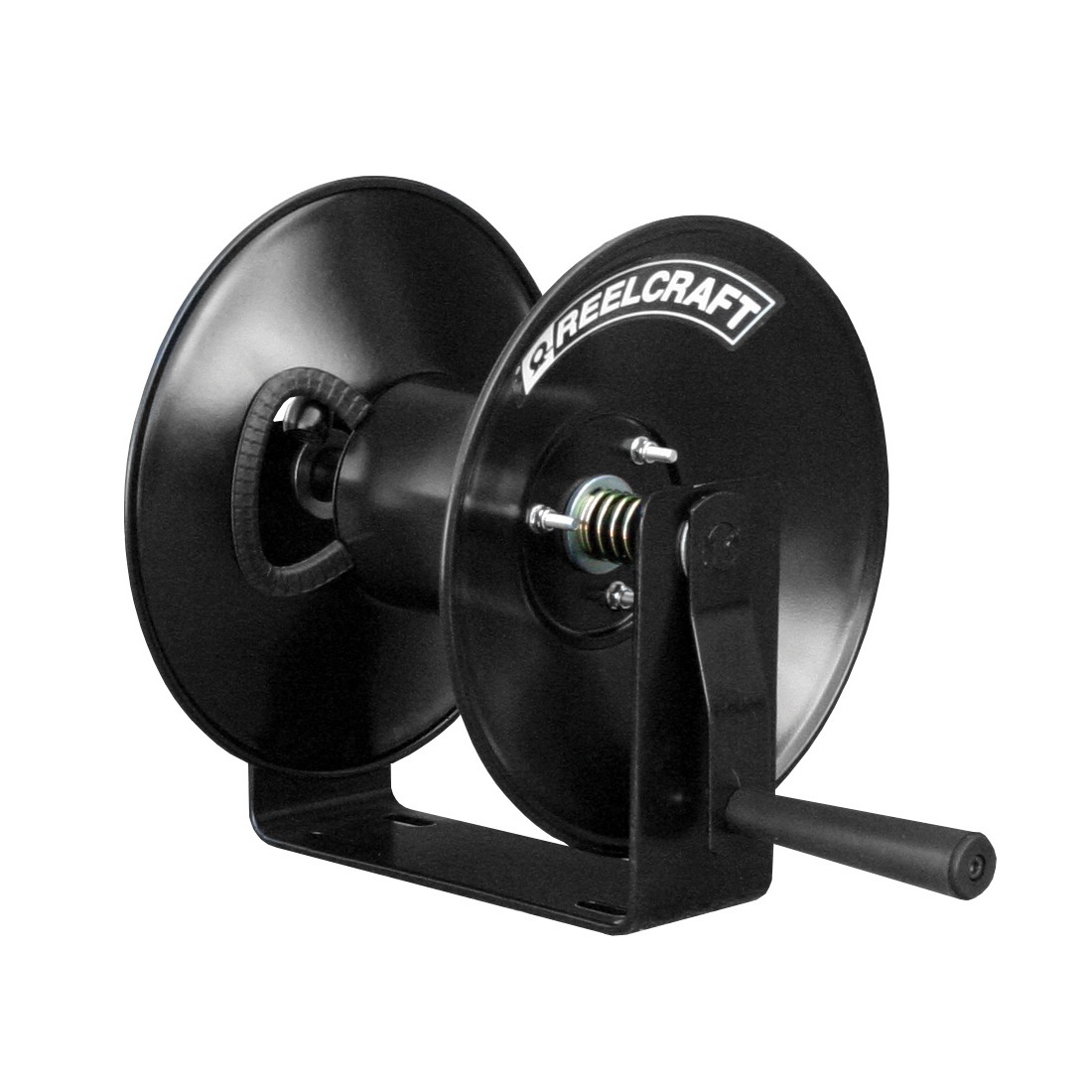

Reelcraft’s Series C hose reels are designed for lighter-duty applications that require longer lengths of low pressure air or water hose. Hand crank with a balanced brass swivel and brass inlet, the Series C is the product of lighter weight components and forward-thinking design. Reels in this family benefit from a tough, corrosion-resistant powder coat paint. All reels feature a drag break to prevent de-spooling when reel is not in use. The Series C is an economical choice for storing and retrieving hose.
- Quality finish and corrosion resistant – Individually powder coated components offer the maximum protection from premature corrosion.
- Low cost – The simple and effective design allows the economical storage and retrieval of hose.
- Easy to operate – The rotating handle allows the hose to be retrieved with ease.
- Easy to mount ? The 4 slotted holes in the base make the reel easy to mount and adjust.
| Weight | 12 lbs |
|---|---|
| Series | C |
| Hose I.D. | 3/8″ |
| Hose O.D. | 0.6″ |
| Hose Length | 50′ |
| Pressure | 300 psi |
| Inlet | 3/8″ NPT(F) |
| Reel Outlet | 3/8″ NPT(F) |
| Hose Included | No |
| Max Temperature | 150 °F |
| UPC | 699567006312 |
| A | 11.5″ |
| B | 16.75″ |
| C | 10.5″ |
| D | 4″ |
| E | 6.625″ |
| F | 9.375″ |
| G | 2″ |
| H | 3.375″ |
Fluid Path Materials
| Internal Fluid Path | Steel |
| Swivel Assembly | Brass |
| Swivel Seal | Buna |
