Name: Cox Reels : 1185 Series : Hand Crank Hose Reels
Brand: Cox Reels
SKU: COX-1185SERIES
Availability: InStock

Features

COXREELS® 1185 Series hand crank hose reels are designed to handle long lengths of large diameter hose for increased volume delivery. Coxreels’ exclusive low profile outlet riser and open drum design provide a non-crimping, flat smooth hose wrap. The sturdy all welded “A” frame base provides exceptional strength to handle the extra weight without sacrificing performance, even in demanding mobile applications.

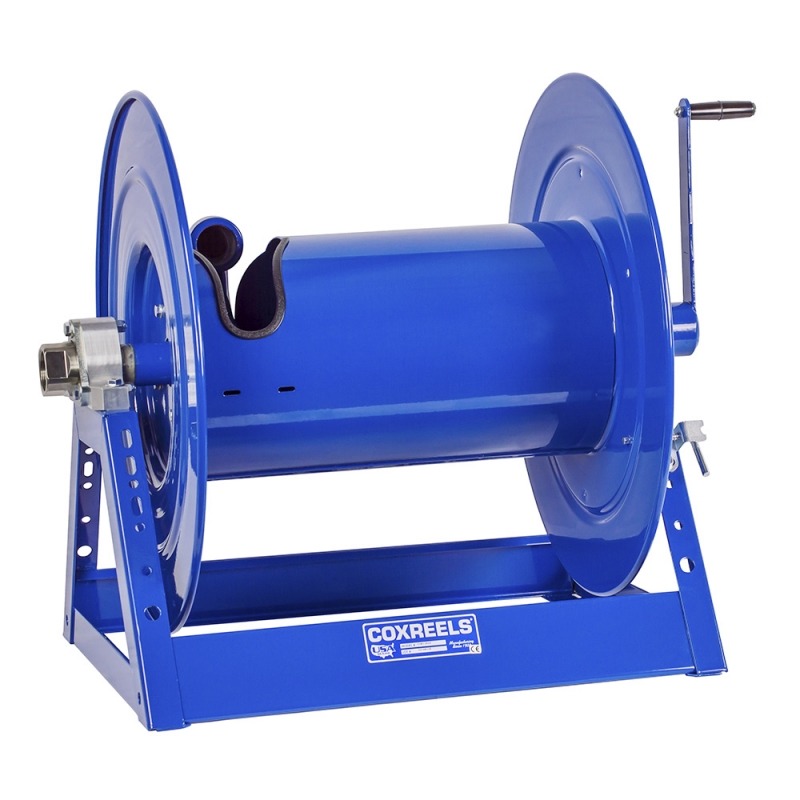

Model Shown: 1185-2024. Please refer to Overall Dimensions and Drum Width for the different reel sizes available.

Swivel

External fluid path with in-line aluminum straight, full flow NPT swivel inlet.
Swivel Seals: NITRILE.

Design & Structure

Exclusive low profile outlet riser & open drum slot design for flat smooth hose wrap.
Robust lubricated horizontal surface mount bearings for easy rotation.
Long-handled locking pin to secure reel from rotation during transport or storage.

Retract

Solid steel direct hand crank with smooth round handle.
Also available in motorized options.

Signature Features

Professional grade heavy duty steel construction.
Rolled edges & ribbed discs provide strength & safety.
Leading 2-year manufacturer’s limited warranty.
Made in the U.S.A. – Sold & Supported Worldwide.
SWIVEL – In-line electroless nickel plated steel full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
CNC SPUN DISCS – Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
OUTLET RISER – Exclusive low profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap.
“A” FRAME – Sturdy one piece, all CNC robotically welded 12 gauge steel “A” frame base, not bolted, for superior reel structure. Mounting pattern located in the steel base for easy reel installation and detachment.
PERMANENT LUBRICATED BEARINGS – Robust lubricated horizontal surface mount bearings for easy rotation.
OTHER FEATURES INCLUDE – long lasting, chip resistant and rust inhibiting CPC powder coat finish, long handled locking pin to secure reel, and front bevel geared crank for easy mechanical retraction.

Model

I.D.

O.D.

Length

Hose

Max PSI

Ship Weight (LBS)

(w) (H) (L)

Mounting Pattern (M) (N)

Base (X) (Y)

1185-1124

1-1/2″

2-1/16″

50′

1500

25″(W) 26″(H) 24″(L)

14.75″(M) 16″(N)

17″(X) 22.25″(Y)

1185-1124-C

1-1/2″

2-1/16″

50′

1500

25″(W) 26″(H) 24″(L)

14.75″(M) 16″(N)

17″(X) 22.25″(Y)

1185-1524

1-1/2″

2-1/16″

75′

1500

29″(W) 26″(H) 24″(L)

18.75″(M) 16″(N)

21″(X) 22.25″(Y)

1185-1524-C

1-1/2″

2-1/16″

75′

1500

29″(W) 26″(H) 24″(L)

18.75″(M) 16″(N)

21″(X) 22.25″(Y)

1185-2020

1-1/2″

2-1/16″

70′

1500

33.5″(W) 21.63″(H) 20″(L)

23.25″(M) 16″(N)

25.5″(X) 19.63″(Y)

1185-2020-C

1-1/2″

2-1/16″

70′

1500

33.5″(W) 21.63″(H) 20″(L)

23.25″(M) 16″(N)

25.5″(X) 19.63″(Y)

1185-2024

1-1/2″

2-1/16″

100′

1500

33.5″(W) 26″(H) 24″(L)

23.25″(M) 16″(N)

25.5″(X) 22.25″(Y)

1185-2024-C

1-1/2″

2-1/16″

100′

1500

33.5″(W) 26″(H) 24″(L)

23.25″(M) 16″(N)

25.5″(X) 22.25″(Y)

1185-2028

1-1/2″

2-1/16″

125′

1500

109

33.5″(W) 30″(H) 28″(L)

23.25″(M) 18.5″(N)

25.5″(X) 24.5″(Y)

1185-2028-C

1-1/2″

2-1/16″

125′

1500

112

33.5″(W) 30″(H) 28″(L)

23.25″(M) 18.5″(N)

25.5″(X) 24.5″(Y)

1185-2528

1-1/2″

2-1/16″

150′

1500

122

38.5″(W) 30″(H) 28″(L)

28.25″(M) 18.5″(N)

30.5″(X) 24.5″(Y)

1185-2528-C

1-1/2″

2-1/16″

150′

1500

125

38.5″(W) 30″(H) 28″(L)

28.25″(M) 18.5″(N)

30.5″(X) 24.5″(Y)

1185-3324

1-1/2″

2-1/16″

175′

1500

154

46.5″(W) 26″(H) 24″(L)

36.25″(M) 18.5″(N)

38.5″(X) 22.25″(Y)

1185-3324-C

1-1/2″

2-1/16″

175′

1500

157

46.5″(W) 26″(H) 24″(L)

36.25″(M) 18.5″(N)

38.5″(X) 22.25″(Y)

1185-3328

1-1/2″

2-1/16″

250′

1500

169

46.5″(W) 30″(H) 28″(L)

36.25″(M) 18.5″(N)

35.5″(X) 24.5″(Y)

1185-3328-C

1-1/2″

2-1/16″

250′

1500

172

46.5″(W) 30″(H) 28″(L)

36.25″(M) 18.5″(N)

35.5″(X) 24.5″(Y)

Show More Show Less

Brand	COX
Select Model	1185-1124, 1185-1124-C, 1185-1524, 1185-1524-C, 1185-2020, 1185-2020-C, 1185-2024, 1185-2024-C, 1185-2028, 1185-2028-C, 1185-2528, 1185-2528-C, 1185-3324, 1185-3324-C, 1185-3328, 1185-3328-C
