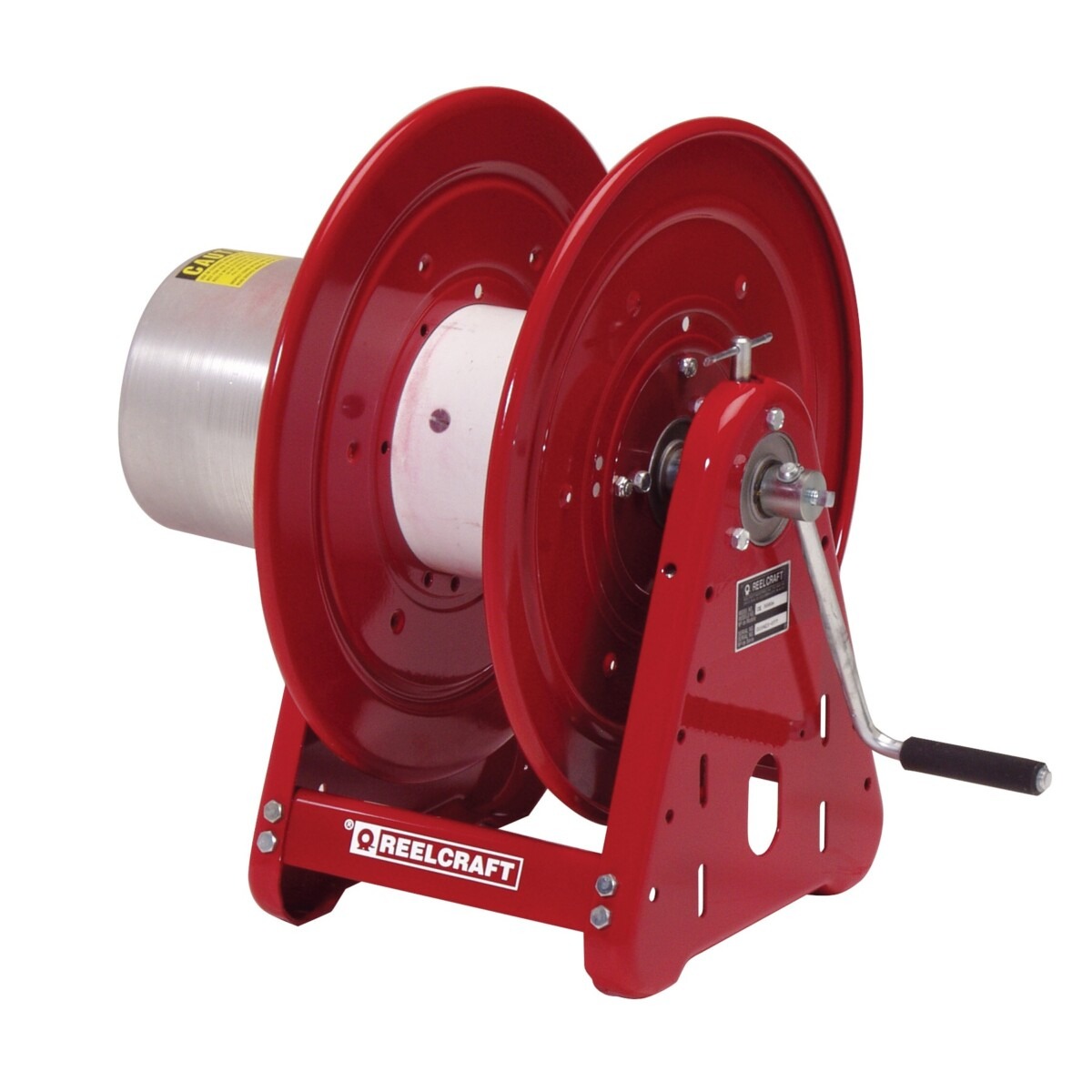

Reelcraft’s Series CEA welding cable reels are designed to increase safety in the work area with a resulting increase in efficiency and productivity. They have a continuous current path through a live 400 AMP, 90 V DC (maximum) rated enclosed slip ring.
- Quality finish and corrosion resistant – Individually powder coated components offer the maximum protection from premature corrosion.
- All-bolted heavy gauge steel construction provides long life and ease of use and maintenance.
- Manual drum lock prevents spool from turning when not in use preventing unwanted pay out of cable.
- Stores cable when not in use, eliminating tangled, kinked welding cables.
| Weight | 46 lbs |
|---|---|
| Series | 30000 |
| Amps | 400 |
| Cable Size #2 | 300′ |
| Cable Size #1 | 250′ |
| Cable Size 1/0 | 200′ |
| Cable Size 2/0 | 150′ |
| Cord/Cable Included | No |
| UPC | 699567002482 |
| Carton Dimensions | 21″ x 20″ x 20.5″ |
| A | 20.25″ |
| B | 19.375″ |
| C | 9″ |
| D | 9.75″ |
| E | 21″ |
| F | 6″ |
