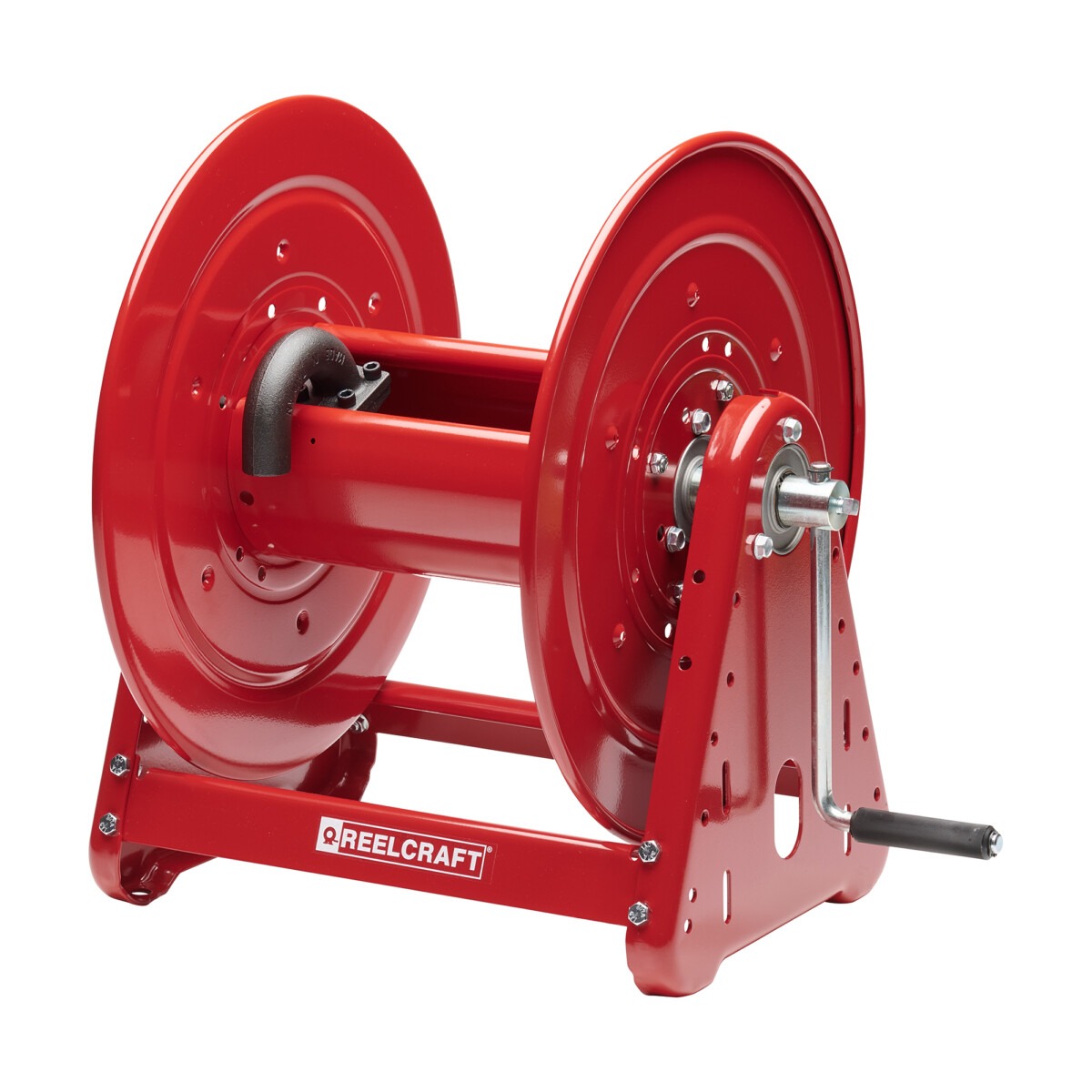

Reelcraft Series 30000 storage hose reels are designed for rugged, heavy-duty applications requiring long lengths of hose and large storage capacity. All-bolted unitized construction with no welds to fatigue, a heavy gauge steel frame, spool, and drum ensure the longest service life. NOTE: Reel is used for storage of hose only and will not allow fluid to flow while still on the reel. The hose must be removed from the reel to be connected and used.
- Quality finish and corrosion resistant – Individually powder coated components offer the maximum protection from premature corrosion.
- Hose replacement made easy – the gooseneck can easily be removed to simplify adding long lengths of hose to the reel.
- Easy to add tension – The T-handle tensioning device allows proper tension to be applied to the spool to eliminate the free spooling of the reel.
| Weight | 50 lbs |
|---|---|
| Series | 30000 |
| 1/4″ Hose Capacity | 425′ |
| 3/8″ Hose Capacity | 300′ |
| 1/2″ Hose Capacity | 200′ |
| 3/4″ Hose Capacity | 100′ |
| 1″ Hose Capacity | 50′ |
| Hose Included | No |
| Max Temperature | 210 °F |
| UPC | 699567002055 |
| Carton Dimensions | 27.75″ x 18″ x 22.25″ |
| A | 20.25″ |
| B | 17.75″ |
| C | 9″ |
| D | 15.75″ |
| E | 25.75″ |
| F | 12″ |
Fluid Path Materials
| Internal Fluid Path | Ductile Iron |
| Swivel Assembly | N/A |
| Swivel Seal | N/A |
