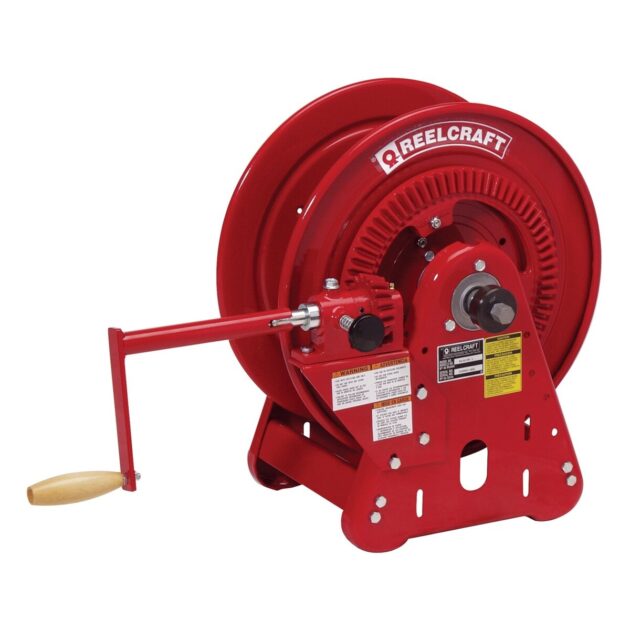

Reelcraft Series BA gas welding hose reels are designed to improve safety in the work area with an increase in productivity and efficiency. The durable baked-on red powder-coated finish provides maximum corrosion resistance. The reel frame, spool, and drum are fabricated of heavy-gauge steel.
- Leak prevention – The double sealed, special molded o-rings prevent leakage. The swivel inlets are both permanently identified with machined grooves on the gas side to assure proper installation.
- Reinforced steel – The robotically welded steel base offers maximum strength and consistent quality.
- T-grade capability – The seals and hoses are T-grade for use with a variety of welding gases including mapp, propane, natural, and fuel gases.
| Weight | 57 lbs |
|---|---|
| Series | 30000 |
| Hose I.D. | 1/4″ |
| Hose O.D. | 0.53″ |
| Hose Length | 250′ |
| Pressure | 200 psi |
| Inlet | 1/4″ NPT(F) |
| Reel Outlet | 9/16 – 18(M) |
| Hose Included | No |
| Max Temperature | 210 °F |
| UPC | 699567002475 |
| Carton Dimensions | 27.75″ x 18″ x 22.25″ |
| A | 20.5″ |
| B | 28.625″ |
| C | 9″ |
| D | 15.75″ |
| E | 21.625″ |
| F | 12″ |
| G | 12.6875″ |
Fluid Path Materials
| Internal Fluid Path | Steel / Brass |
| Swivel Assembly | Aluminum |
| Swivel Seal | Buna |
