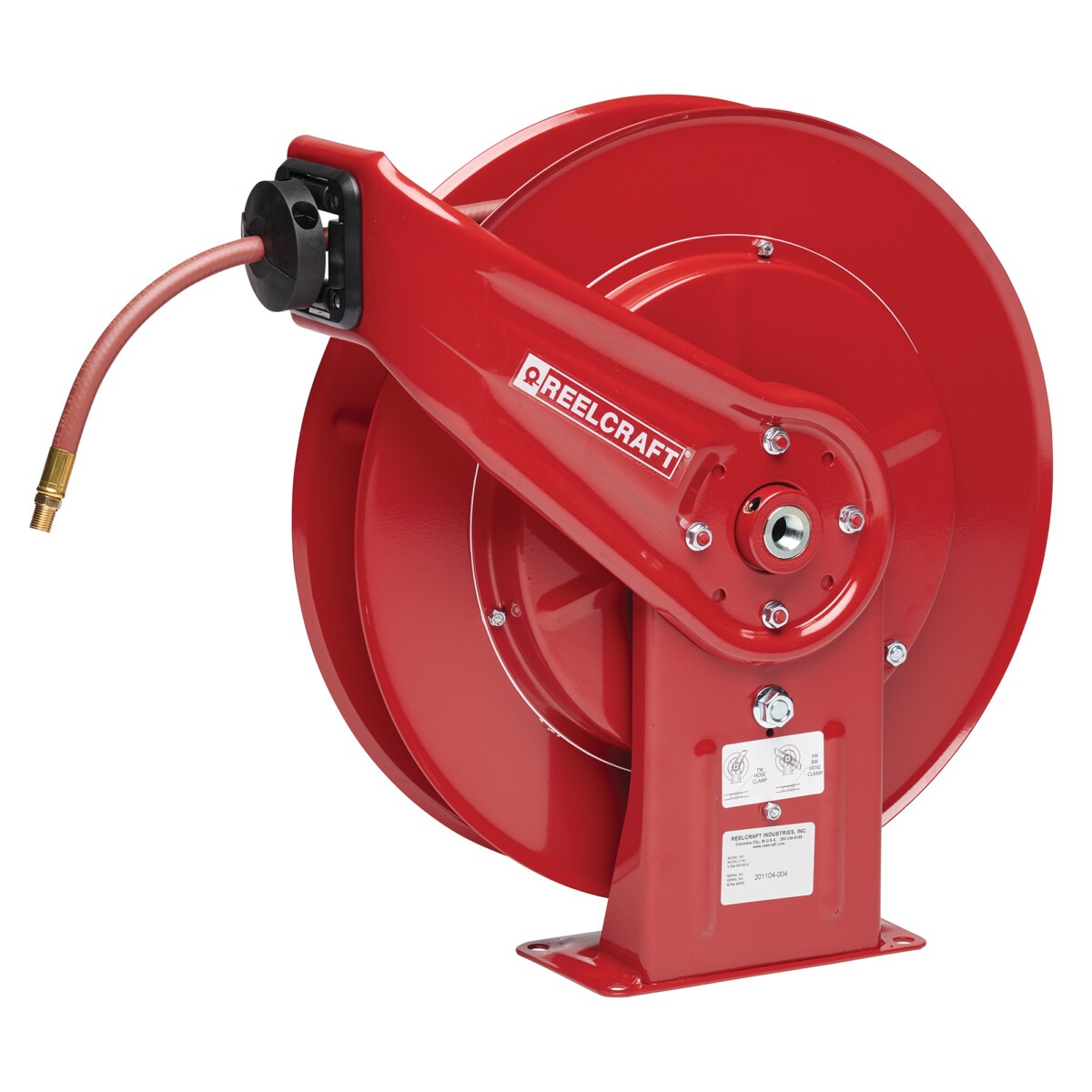

The Reelcraft Series 7000 spring retractable hose reel is very robust and ideal for the most demanding applications. The base and guide arm are constructed from high-grade steel and engineered with structural forms and gussets to yield the greatest amount of strength.
- Individually powder-coated steel components provide maximum protection from premature corrosion
- Inlet hose is plumbed into the base to eliminate the risk of stress on the swivel
- Low-pressure 3/4 in. x 25 ft. PVC hose included; hose is for air or water service only
- Guide arm adjusts to seven positions
- Base plate, upright, and guide arm are constructed from 11 gauge steel; the spool is 16 gauge steel
- Additional Series 7000 spring retractable hose reel models include stainless steel, controlled return, enclosed, twin hydraulic, fuel delivery, pressure wash, and gas/cable welding
- Made in the USA
*Reel is shipped in the top wind position. The reel image is shown in the side wind position.
| Weight | 47 lbs |
|---|---|
| Series | 7000 |
| Hose I.D. | 3/4″ |
| Hose O.D. | 1.075″ |
| Hose Length | 25′ |
| Pressure | 250 psi |
| Hose End | 3/4″ NPT(M) |
| Inlet | 3/4″ NPT(F) |
| Reel Outlet | 3/4″ NPT(F) |
| Hose Included | Yes |
| Max Temperature | 150 °F |
| UPC | 699567000259 |
| Carton Dimensions | 23.375″ x 9.375″ x 25.5″ |
| A | 20.25″ |
| B | 19.75″ |
| C | 7.8125″ |
| D | 3.875″ |
| E | 7″ |
Fluid Path Materials
| Internal Fluid Path | Steel |
| Swivel Assembly | Steel |
| Swivel Seal | Aflas |
