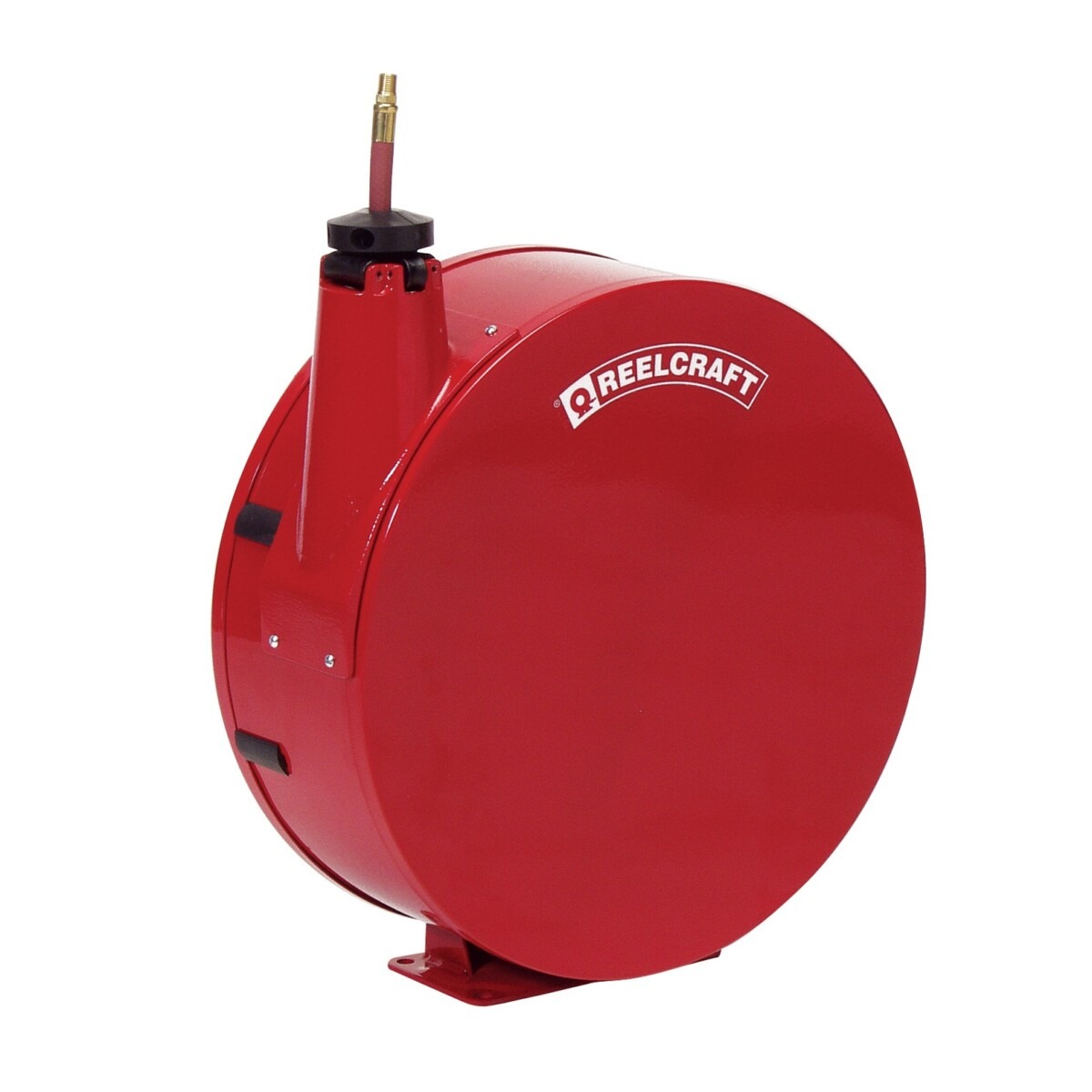

The Reelcraft Series 7000 spring retractable hose reel is very robust and ideal for the most demanding applications. The base and guide arm are constructed from high-grade steel and engineered with structural forms and gussets to yield the greatest amount of strength.
- Extra protection – Reels feature a steel enclosure that offers an additional level of protection for the hose from potentially harmful foreign debris. The steel cover can be removed from either side of the reel to allow access to the majority of serviceable parts.
- Individually powder-coated steel components provide maximum protection from premature corrosion
- Inlet hose is plumbed into the base to eliminate the risk of stress on the swivel
- Low-pressure 1/2 in. x 50 ft. PVC hose included; hose is for air or water service only
- Guide arm adjusts to seven positions
- Base plate, upright, and guide arm are constructed from 11 gauge steel; the spool is 16 gauge steel
- Additional Series 7000 spring retractable hose reel models include stainless steel, controlled return, enclosed, twin hydraulic, fuel delivery, pressure wash, and gas/cable welding
- Made in the USA
| Weight | 64 lbs |
|---|---|
| Series | 7000 E |
| Hose I.D. | 1/2″ |
| Hose O.D. | 0.75″ |
| Hose Length | 50′ |
| Pressure | 300 psi |
| Hose End | 3/8″ NPT(M) |
| Inlet | 1/2″ NPT(F) |
| Reel Outlet | 1/2″ NPT(F) |
| Hose Included | Yes |
| Max Temperature | 150 °F |
| UPC | 699567001232 |
| Carton Dimensions | 22.25″ x 10.75″ x 25″ |
| A | 20.875″ |
| B | 21.125″ |
| C | 7.8125″ |
| D | 3.875″ |
| E | 7.625″ |
Fluid Path Materials
| Internal Fluid Path | Steel |
| Swivel Assembly | Steel |
| Swivel Seal | Buna |
