Reelcraft Series 5000 pre-rinse hose reels are durable and compact for a wide range of applications with critical space requirements.
- Hose is plumbed into the base to eliminate the risk of undue stress on the swivel
- Low-pressure 3/8 in. x 35 ft. rubber hose included; rated for hot water up to 180 °F (82 °C)
- A lever-operated spray valve is included (S600080)
- Optional 360° rotating swivel (600248) offers 20° of angular motion
- Push-Lok®, field replaceable, hose end fittings
- Base plate and upright are constructed from 14 gauge steel; the guide arm is 13 gauge and the spool is 16 gauge steel
- The reliable speed latch allows for positive locking of the spool in two positions per rotation
- Individually powder-coated steel components provide maximum protection from premature corrosion
- Robotically welded steel base offers maximum strength and consistent quality
- Guide arm adjusts to two positions
- Made in the USA

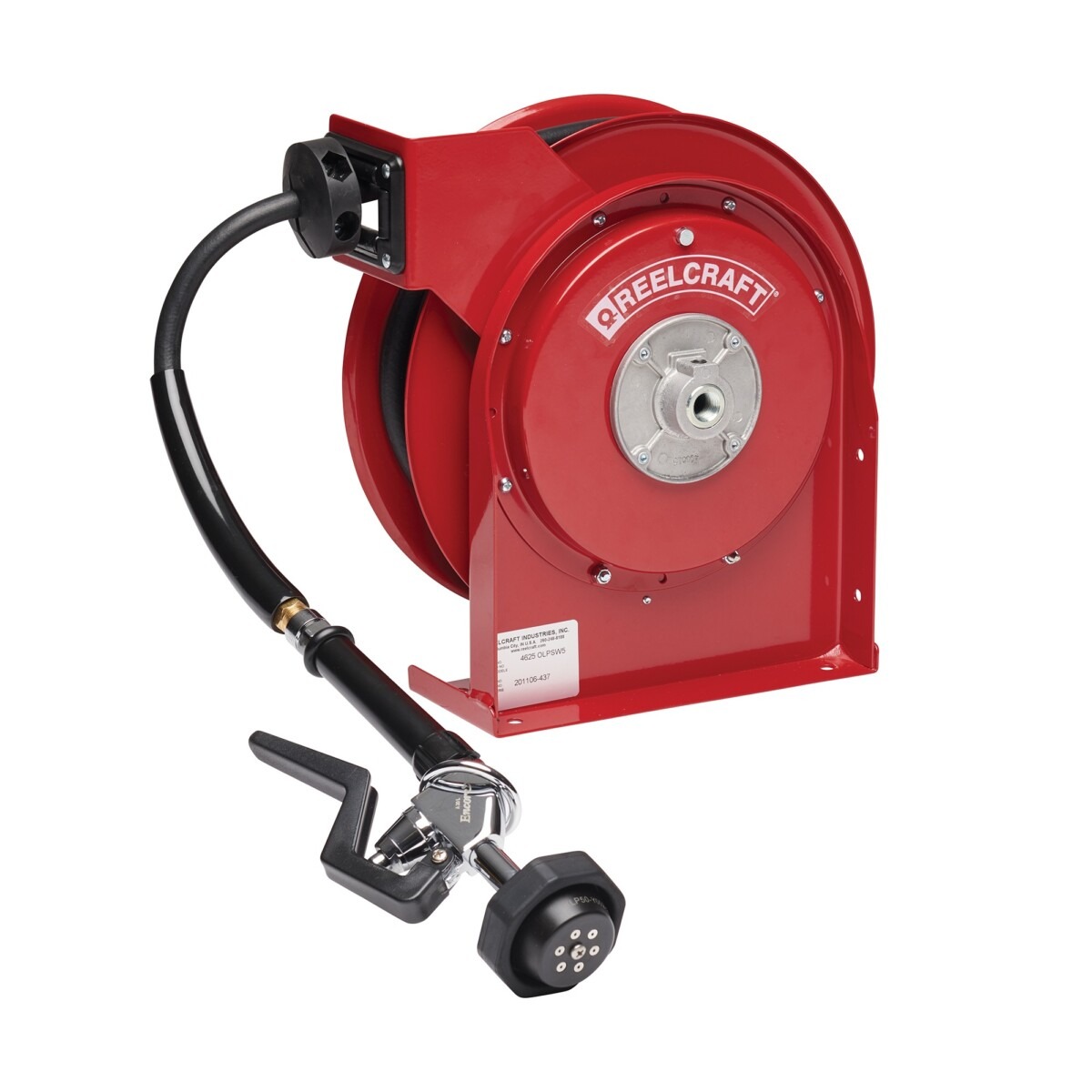

*Reel is shipped in the top wind position. The reel image is shown in the side wind position.
| Weight | 27 lbs |
|---|---|
| Series | 5000 |
| Hose I.D. | 3/8″ |
| Hose O.D. | 0.640″ |
| Hose Length | 35′ |
| Pressure | 125 psi |
| Hose End | 3/8″ NPT(M) |
| Inlet | 3/8″ NPT(F) |
| Reel Outlet | 1/4″ NPT(F) |
| Hose Included | Yes |
| Max Temperature | 180 °F |
| UPC | 699567002697 |
| Carton Dimensions | 14.375″ x 6″ x 15.25″ |
| A | 14.375″ |
| B | 14.25″ |
| C | 9.75″ |
| D | 2.5″ |
| E | 6.125″ |
Fluid Path Materials
| Internal Fluid Path | Steel |
| Swivel Assembly | Copper |
| Swivel Seal | Buna |
