Reelcraft Series 5005 hose reels are durable and compact for a wide range of applications with critical space requirements.
- Hose is plumbed into the base to eliminate the risk of undue stress on the swivel
- The bent tube swivel design offers a smooth hose transition onto the spool
- The swivel is nested inside the spool for protection from impact and the environment
- Hose not included on this model
- Base plate and upright are constructed from 14 gauge steel; the guide arm is 13 gauge and the spool is 16 gauge steel
- The reliable speed latch allows for positive locking of the spool in two positions per rotation
- Individually powder-coated steel components provide maximum protection from premature corrosion
- Robotically welded steel base offers maximum strength and consistent quality
- Guide arm adjusts to two positions
- Made in the USA

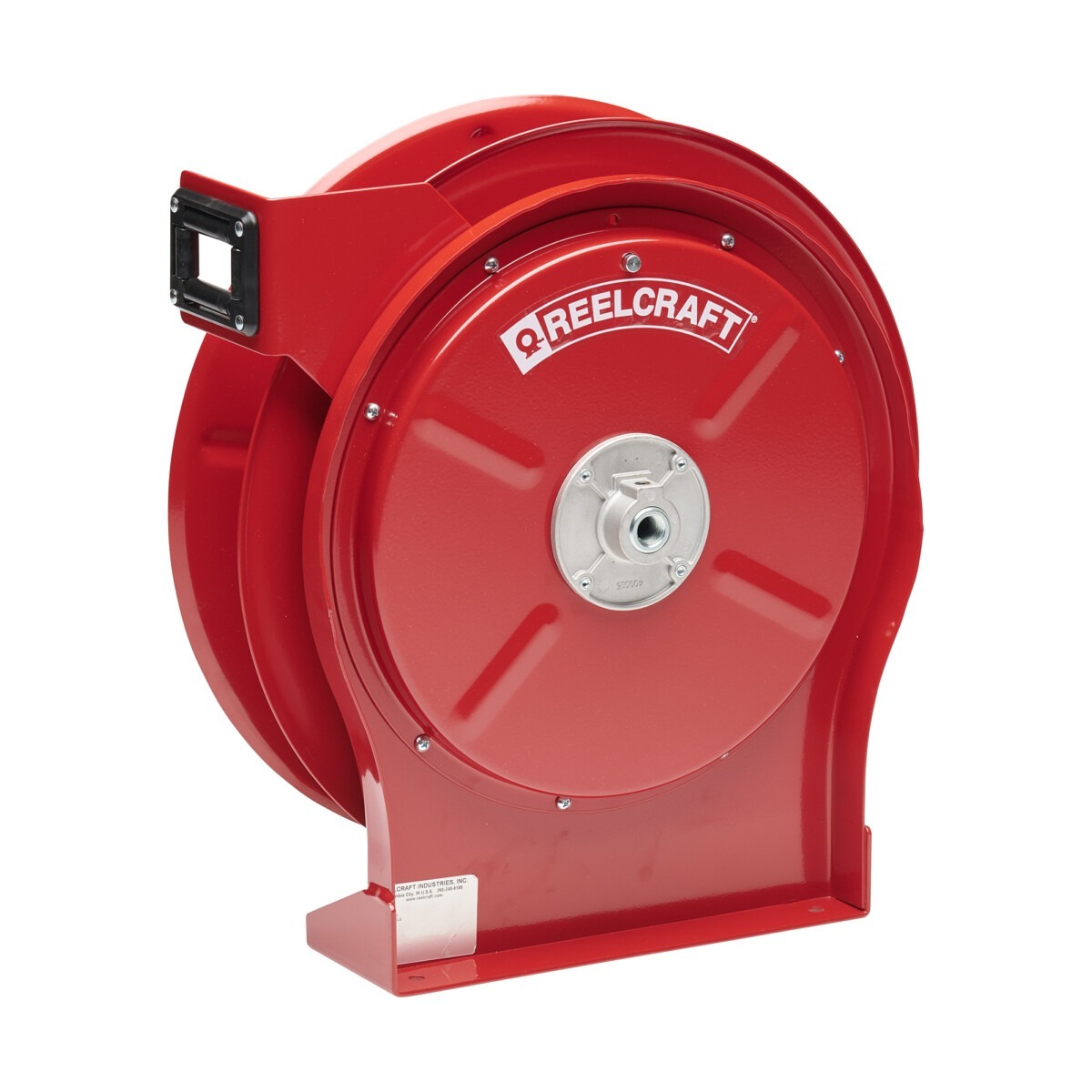

*Reel is shipped in the top wind position. The reel image is shown in the side wind position.
Weight |
31 lbs |
Series |
5005 |
Hose I.D. |
3/8″ |
Hose O.D. |
0.600″ |
Hose Length |
50′ |
Pressure |
500 psi |
Inlet |
3/8″ NPT(F) |
Reel Outlet |
1/4″ NPT(F) |
Hose Included |
No |
Max Temperature |
210 °F |
UPC |
699567001102 |
Carton Dimensions |
17″ x 6.25″ x 19″ |
A |
17.625″ |
B |
16.75″ |
C |
9.75″ |
D |
2.5″ |
E |
5.875″ |

Fluid Path Materials
Internal Fluid Path |
Steel |
Swivel Assembly |
Copper |
Swivel Seal |
Buna |
