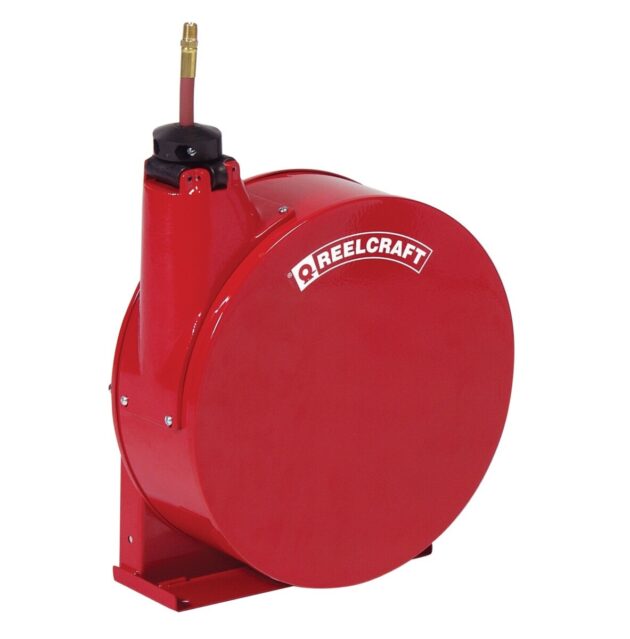

Series 5000 enclosed reels are durable and compact for a wide range of applications with critical space requirements. A full flow shaft and swivel assures maximum product delivery.
- Extra protection – Reels feature a steel enclosure that offers an additional level of protection for the hose from potentially harmful foreign debris. The reel design allows for the cover to be removed from either side of the reel to allow access to the majority of serviceable parts.
- Low-pressure 1/4 in. x 50 ft. PVC hose included; hose is for air or water service only
- Base plate and upright are constructed from 14 gauge steel; the guide arm is 13 gauge and the spool and cover are 16 gauge steel
- The reliable speed latch allows for positive locking of the spool in two positions per rotation
- Individually powder-coated steel components provide maximum protection from premature corrosion
- Robotically welded steel base offers maximum strength and consistent quality
- Guide arm adjusts to two positions
- Made in the USA
| Weight | 34 lbs |
|---|---|
| Series | 5000 E |
| Hose I.D. | 1/4″ |
| Hose O.D. | 0.475″ |
| Hose Length | 50′ |
| Pressure | 300 psi |
| Hose End | 1/4″ NPT(M) |
| Inlet | 3/8″ NPT(F) |
| Reel Outlet | 1/4″ NPT(F) |
| Hose Included | Yes |
| Max Temperature | 150 °F |
| UPC | 699567000914 |
| Carton Dimensions | 15.625″ x 8.375″ x 18.25″ |
| A | 15″ |
| B | 16.25″ |
| C | 9.75″ |
| D | 2.5″ |
| E | 7″ |
Fluid Path Materials
| Internal Fluid Path | Steel |
| Swivel Assembly | Copper |
| Swivel Seal | Buna |
