Series 4000 reels are durable and compact for a wide range of applications with critical space requirements.
- Hose is plumbed into the base to eliminate the risk of undue stress on the swivel
- The bent tube swivel design offers a smooth hose transition onto the spool
- Swivel is nested inside the spool for protection from impact and the environment
- Hose not included on this model
- Base plate and upright are constructed from 14 gauge steel; the guide arm is 13 gauge and the spool is 16 gauge steel
- The reliable speed latch allows for positive locking of the spool in two positions per rotation
- Individually powder-coated steel components provide maximum protection from premature corrosion
- Robotically welded steel base offers maximum strength and consistent quality
- Made in the USA

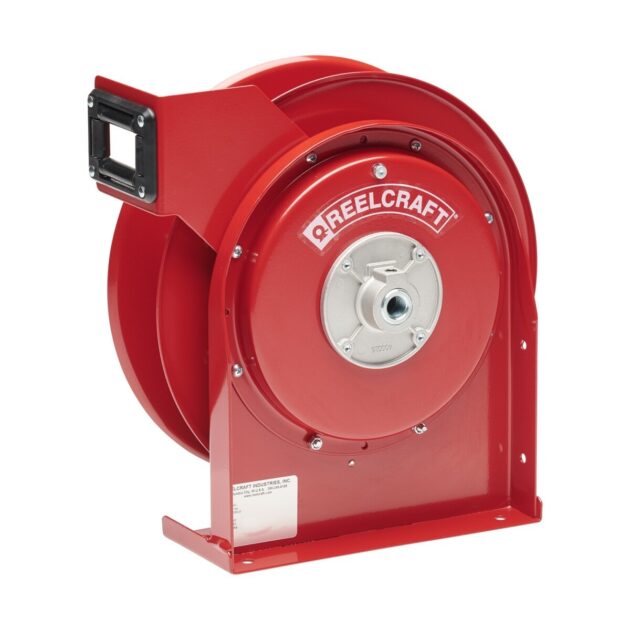

*Reel is shipped in the top wind position. The reel image is shown in the side wind position.
| Weight | 17 lbs |
|---|---|
| Series | 4000 |
| Hose I.D. | 3/8″ |
| Hose O.D. | 0.600″ |
| Hose Length | 25′ |
| Pressure | 500 psi |
| Inlet | 3/8″ NPT(F) |
| Reel Outlet | 1/4″ NPT(F) |
| Hose Included | No |
| Max Temperature | 210 °F |
| UPC | 699567000754 |
| Carton Dimensions | 13″ x 5.375″ x 13.5″ |
| A | 12.875″ |
| B | 12.625″ |
| C | 8″ |
| D | 2.5″ |
| E | 5.625″ |
Fluid Path Materials
| Internal Fluid Path | Steel |
| Swivel Assembly | Copper |
| Swivel Seal | Buna |
