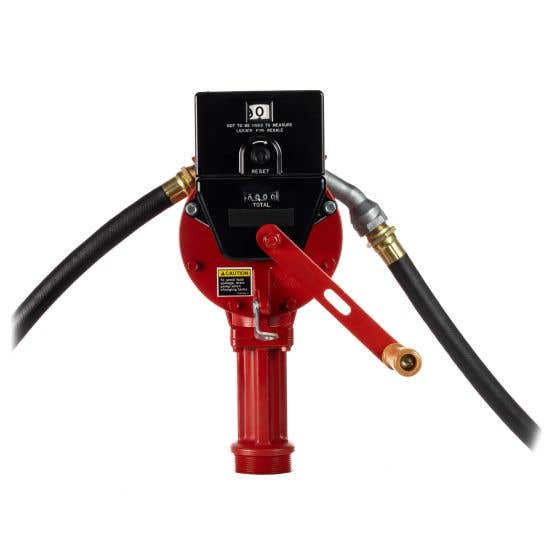

The FR112C model is a hand-operated, heavy-duty fuel transfer pump that delivers 10 gallons per 100 rotations. This pump and accessory bundle comes complete with a gallon counter, hose, nozzle spout, suction pipe, and installation components.
Features
- Cast-Aluminum Construction — built to last with rugged cast-aluminum construction, designed for maximum durability and lifetime corrosion resistance
- Flexible Fueling — reversible flow design allows you to use your pump for fueling and draining vehicle fuel tanks
- No Electricity Needed — ideal for low-volume applications where access to power is not available or required, allowing for stationary use or complete mobility
- Theft Prevention — padlock-compatible handle adds security to protect your investment
- Prevents Spillage — included discharge nozzle storage and anti-siphon technology prevent accidental fuel spillage, eliminating mess enhancing safety
- Protects Equipment — included strainer keeps large particulate contaminants out of your equipment
- Fluid Compatibility — designed for daily use with gasoline, diesel, heptane, kerosene, Stoddard solvents, light oils, and mineral spirits
You work through all kinds of conditions, so why shouldn’t your fuel transfer pump? For over 60 years, Fill-Rite has set the standard for reliable fuel transfer pumps, meters, and accessories. Our customers recognize Fill-Rite for its durability and years of elite performance in the field. Proudly made in the USA with global materials, Fill-Rite equipment is constructed with heavy-duty materials to withstand rugged everyday use, extreme weather exposure, and both on and off-road applications. Fill-Rite is supported by a wide network of distributors and retailers, ensuring you will always be able to find replacement parts and rebuild kits for your fuel transfer equipment.
Performance
| Max Flowrate | 10 Gal / 38 Liters Per 100 Revolutions |
|---|---|
| Power Type | Hand-Operated |
| Compatible Fluids | Diesel, Gasoline, Kerosene, Mineral Spirits, Heptane, Stoddard Solvents |
| Inlet Size / Connection / Thread | 1 ” / Female / NPT |
| Outlet Size / Connection / Thread | 0.75 ” / Female / NPT |
| Mounting Size / Thread / Type | 2″ / NPT / Bung Mount |
| Self Priming | — |
| Duty Cycle (min) | Continuous Duty |
Included Accessories
| Suction Pipe | 20” – 34 ½” Steel Telescoping Suction Pipe |
|---|---|
| Nozzle | ¾” Cast Aluminum Nozzle Spout |
| Discharge Hose | 5/8″ X 8′ UL Listed Hose with Static Ground Wire |
| Additional Accessories | — |
| Additional Accessories | — |
Dimensions
| Assembled Product Height x Width x Depth (in.) | 15.5 x 6.4 x 9.5 |
|---|---|
| Assembled Product Weight (lbs.) | 9.8 |
| Package Height x Width x Depth (in.) | 8.56 x 23.38 x 8.63 |
| Gross Weight (lbs.) | 15.900 lbs |
