The Reelcraft stainless steel hose reels are ideal for food processing, pre-rinse, wash down, chemical transfer, and industrial-solvent handling. Stainless steel reels are suitable for coastal, offshore, and on-board ships in marine applications. The swivel includes Viton O-rings. Note: Standard latch parts are made from aluminum. Stainless latch parts and fluid path are available as a standard option by placing a -S at the end of the part number. Example: OLS-S
- Reinforced steel – The stainless steel guide arm and base are stamped with ribs and gussets to ensure maximum strength and lightest possible weight.
- Inlet hose is plumbed into the base to eliminate the risk of stress on the swivel
- Guide arm adjusts to seven positions
- Quality finish and corrosions resistant – Stainless steel components offer the maximum protection from premature corrosion.
- Made in USA

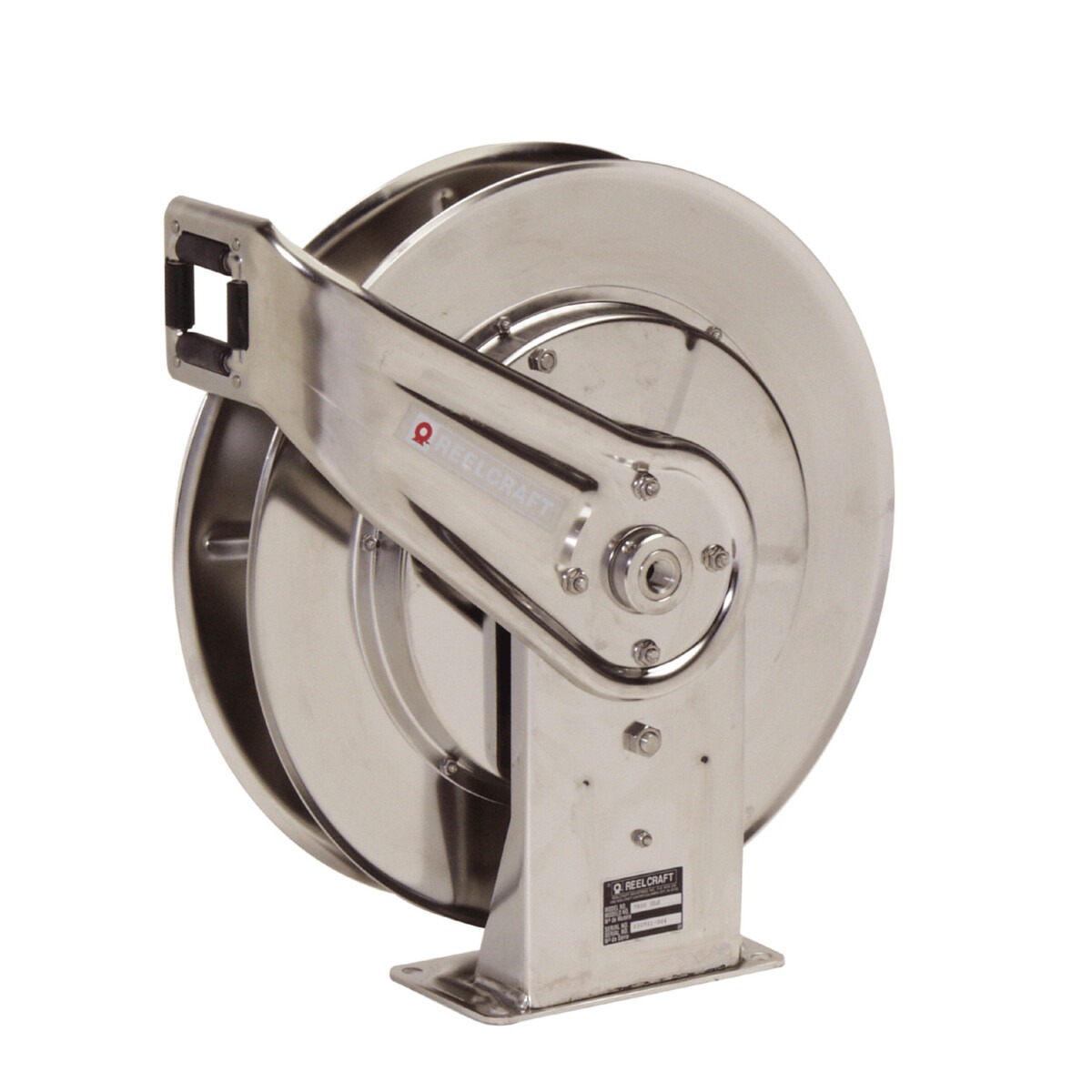

*Reel is shipped in the top wind position. The reel image is shown in the side wind position.
| Weight | 42 lbs |
|---|---|
| Series | 7000 |
| Hose I.D. | 3/8″ |
| Hose O.D. | 0.71″ |
| Hose Length | 66′ |
| Pressure | 3000 psi |
| Inlet | 3/8″ NPT(F) |
| Reel Outlet | 3/8″ NPT(F) |
| Hose Included | No |
| Max Temperature | 210 °F |
| UPC | 699567006954 |
| Carton Dimensions | 23.375″ x 9.375″ x 25.5″ |
| A | 20.25″ |
| B | 19.75″ |
| C | 7.8125″ |
| D | 3.875″ |
| E | 7″ |
Fluid Path Materials
| Internal Fluid Path | Stainless Steel |
| Swivel Assembly | Stainless Steel |
| Swivel Seal | EPR |
